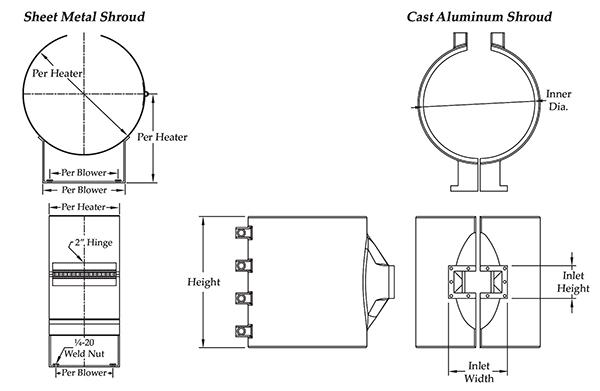

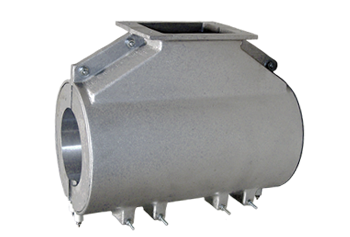

Finned air-cooled cast-in band heaters can be paired with individual shroud and blower systems to create self-contained cooling solutions for extruder barrels. These shrouds are available in two primary designs: cast aluminum with bolt-on mounting or a hinged clamshell style fabricated from stainless steel. Internally, the shroud throat is engineered to direct airflow efficiently across the finned heater surface, ensuring rapid and uniform cooling.
Each shroud includes a reinforced mounting platform at the blower orifice, designed to accommodate standard blower sizes. Custom mounting configurations and dimensions are also available to support non-standard or customer-supplied blowers.
Shroud System Design Features:
Constructed from durable cast aluminum or bronze
Internal air deflector system enhances airflow distribution
Vertical or horizontal blower mounting platforms
Customizable blower mounts for unique applications
Compatible with standard blowers ranging from 145 CFM to 495 CFM

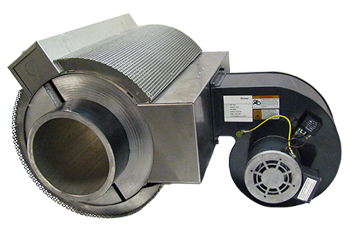

High Velocity Air-Cooled Band Heater Shroud System
Elevate your machine’s performance and appearance with the High Velocity Air-Cooled Shroud System from Durex Industries. Designed for efficiency, durability, and ease of use, this system delivers superior cooling while enhancing the overall look of your equipment.
High Velocity Shroud System Features:
Precision-engineered for fast, hassle-free installation
