The TAM style adjustable melt bolt thermocouple probe has a movable probe activated by an inner screw mechanism. The temperature probe can be immersed into or withdrawn from the plastic melt stream while the extruder is in full operation at maximum flow rates and pressures. This feature permits temperature measurement at various depths in the melt stream, eliminates thermocouple breakage at startup and prevents hang-up. The thermocouple is self-cleaning, as it is retracted into the body any film formed on it is scraped off.

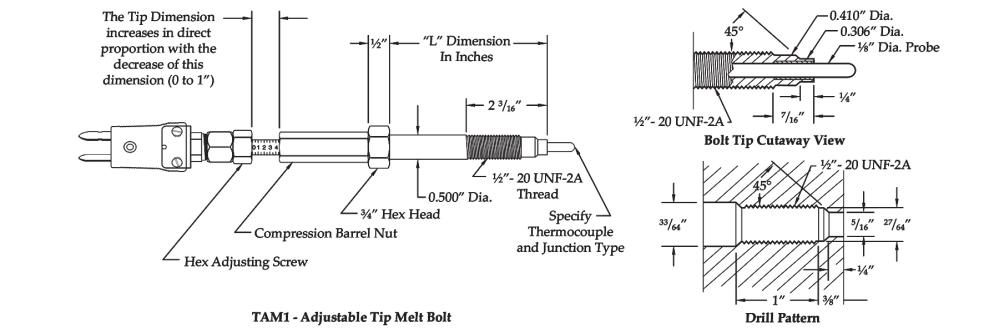

The TAM1 style adjustable melt bolt thermocouple consists of a 1/8" Outer Diameter MgO insulated type "J" thermocouple in a stainless steel sheath. The body is stainless steel with a 1/2" - 20 UNF-2A thread. A thermal barrier reduces heat transfer from body to the thermocouple. Other parts include a packing seal, compression barrel nut, hex adjusting screw, and a polarized quick-disconnect male plug. Standard immersion is adjustable from flush to 1". Standard body lengths are 3", 4", and 6" measured from the beginning of wrench flats to the bolt tip.

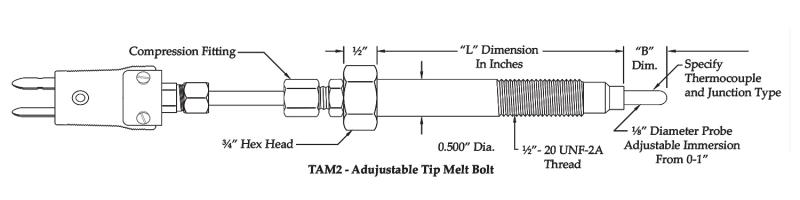

The TAM2 style adjustable melt bolt thermocouple features an all stainless steel construction and uses a compression fitting as the mechanism for the adjustment. This allows for easy and economical replacement of the mineral insulated thermocouple element.
