Protection Tube Thermocouple Replacement Elements
The TEBA and TEBD style base metal thermocouple replacement elements for all ceramic or metal protection tube assemblies. The TEAB style thermocouple sensor is a replacement element for the TPA 90° angle protection tube thermocouple assembly.
Part Number Configuration - Example: TEBA-JB-080022H0
TEBA - TC Type + Junction Type - Bare Element Gauge + 00 + "L" Dimension + Termination

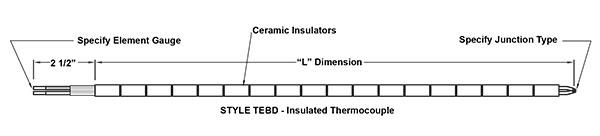

Part Number Configuration - Example: TEBD-JB-081M22H0
TEBD - TC Type + Junction Type - Bare Element Gauge + Insulator Type + Insulator Material + "L" Dimension + Termination

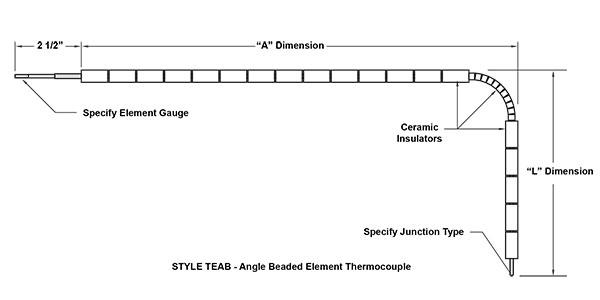

Part Number Configuration - Example: TEAB-JB-1412D-32M
TEAB - TC Type + Junction Type - Bare Element Gauge + "L" Dimension - "A" Dimension
Specs & Options
Thermocouple Types
| Thermocouple Type Codes | Limits of Error | |||
| E | J | K | T | Standard Limits |
| 2 | 3 | 4 | 8 | Special Limits |
Element Junction Types
| Code | Junction Types |
| B | Single Junction - Buttwelded |
| D | Single Junction - Twisted and Welded |
| F | Dual Junction - Buttweld, 14 GA & 20 GA only |
| M | Dual Junction - Twisted & Welded, 14 GA & 20 GA only |
Element Gauge Sizes
| Code | Bare Element Wire Gauge Size |
| 08 | 8 Gauge |
| 14 | 14 Gauge |
| 20 | 20 Gauge |
| 24 | 24 Gauge |
Element Insulator Type
| Code | Insulator Type Description |
| 1 | Single Round Insulator |
| 2 | 1” Long Oval Insulator |
| 3 | 1” Long Round Insulator |
| 4 | 3” Long Round Insulator |
| 5 | 3” Long Oval Insulator |
Element Insulator Material
| Code | Insulator Material Description |
| A | Alumina |
| M | Mullite |
| C | Ceramic |
Dimensional Chart
| “L” Dimensions & “U” Dimensions | “A” Dimensions | Fractional Dimension Letter Code | |||||||
| “L” and “U” dimensions are specified in whole inches and use a letter Code for the fraction. (Enter 0 when there is no fraction) Enter the three digit code per examples below: |
“A” dimensions are specified in whole inches only. Enter the three digit code as follows: |
1/16" | A | 11/16" | L | ||||
| 1/8" | B | 3/4" | M | ||||||
| 3/16" | C | 13/16" | N | ||||||
| 1/4" | D | 7/8" | P | ||||||
| 5/16" | E | 15/16" | R | ||||||
| 3" | 030 | 10 5/8" | 10K | 3/8" | F | 1" | S | ||
| 4 1/2" | 04H | 12" | 120 | 9" | 009 | 7/16" | G | 0 | No |
| 6 1/4" | 06D | 15 3/8" | 15F | 12" | 012 | 1/2" | H | ||
| 7 7/8" | 07P | 17 3/4" | 17M | 36" | 036 | 9/16" | J | ||
| 9 5/8" | 09K | 22 1/8" | 22B | 144" | 144 | 5/8" | K | ||
Element Termination Types
| Code | Termination Types |
| 0 | 2" Split Ends |
| 1 | #6 Spade Lug |
| 3 | Standard Plug |
| M | Mini Plug |
