Platinum Thermocouple Replacement Elements
The TENE style thermocouple is a platinum (noble metal) element designed as a replacement for high-temperature protection tube assemblies.

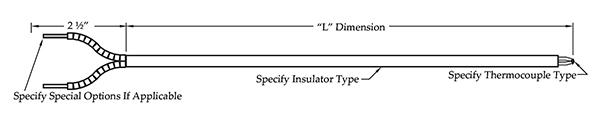

Thermocouple Element Without Collar

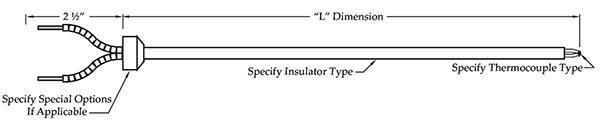

Thermocouple Element With Collar
Part Number Configuration - Example: TENE-SR24-CM06H0S00
TENE - TC Quantity + Calibration Type + Gauge (24) - Insulator Size + Insulator Material + "L" Dimension" + Element Position + Limits of Error + Collar + Termination
Thermocouple Type
| Element & Gauge | |
| Single | Dual |
| SR26 | DR26 |
| SR24 | DR24 |
| SR20 | DR20 |
| SS26 | DS26 |
| SS24 | DS24 |
| SS20 | DS20 |
| SB24 | DB24 |
| SC24 | DC24 |
Insulator Type
| Code | Size / Material |
| BM | 1/8 OD Mullite |
| CM | 3/16 OD Mullite |
| DM | 1/4 OD Mullite |
| BA | 1/8 OD Alumina |
| CA | 3/16 OD Alumina |
| DA | 1/4 OD Alumina |
Dimensional Chart
| “L” Dimensions & “U” Dimensions | “A” Dimensions | Fractional Dimension Letter Code | |||||||
| “L” and “U” dimensions are specified in whole inches and use a letter Code for the fraction. (Enter 0 when there is no fraction) Enter the three digit code per examples below: |
“A” dimensions are specified in whole inches only. Enter the three digit code as follows: |
1/16" | A | 11/16" | L | ||||
| 1/8" | B | 3/4" | M | ||||||
| 3/16" | C | 13/16" | N | ||||||
| 1/4" | D | 7/8" | P | ||||||
| 5/16" | E | 15/16" | R | ||||||
| 3" | 030 | 10 5/8" | 10K | 3/8" | F | 1" | S | ||
| 4 1/2" | 04H | 12" | 120 | 9" | 009 | 7/16" | G | 0 | No |
| 6 1/4" | 06D | 15 3/8" | 15F | 12" | 012 | 1/2" | H | ||
| 7 7/8" | 07P | 17 3/4" | 17M | 36" | 036 | 9/16" | J | ||
| 9 5/8" | 09K | 22 1/8" | 22B | 144" | 144 | 5/8" | K | ||
Special Options
| Code | Description |
| C | 1/2" OD Collar |
| R | Recessed Junction |
| L | Special Limits of Error |
To learn more about our platinum thermocouple solutions call us at (800) 739-9060 or contact us below.
