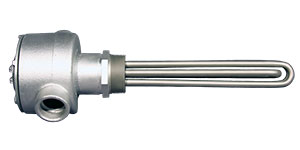

Screw Plug Immersion Heaters With NEMA 4 Enclosure

0.00
Contact Us Request a Quote

Industry standard designed screw plug immersion heaters with heavy duty NEMA 4 moisture resistant cast iron terminal enclosure. 2" & 2 1/2" NPT sizes available with no thermostat or thermostat ranges of 0-100°F, 60-250°F and 100-550°F. Screw plug heaters designed in various lengths, materials, wattage and voltage.

Can’t find what you need?
Contact us, we’ll work with you to engineer, design & manufacture a screw plug immersion heater to your specifications.

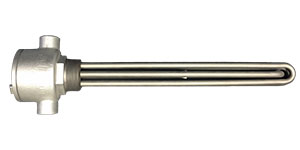

Screw Plug Immersion Heaters–NEMA 4 Enclosures No Thermostat

Back to Top

APPLICATION: CLEAN WATER

NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" Brass 3-Copper 3000 240V/3PH 60 8 3/8" No MS20BC-A08FL-3000ZG $454.00
2" Brass 3-Copper 4500 240V/3PH 60 11 1/8" No MS20BC-A11BL-4500ZG $502.00
2" Brass 3-Copper 6000 240V/3PH 60 13 7/8" No MS20BC-A13PL-6000ZG $528.00
2" Brass 3-Copper 7500 240V/3PH 60 16 5/8" No MS20BC-A16KL-7500ZG $566.00
2" Brass 3-Copper 9000 240V/3PH 60 19 3/8" No MS20BC-A19FL-9000ZG $592.00
2" Brass 3-Copper 12000 240V/3PH 60 24 7/8" No MS20BC-A24PL-120CZG $676.00
2" Brass 3-Copper 15000 240V/3PH 60 30 3/8" No MS20BC-A30FL-150CZG $772.00
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" Brass 3-Copper 3000 480V/3PH 60 8 3/8" No MS20BC-A08FP-3000ZG $454.00
2" Brass 3-Copper 4500 480V/3PH 60 11 1/8" No MS20BC-A11BP-4500ZG $502.00
2" Brass 3-Copper 6000 480V/3PH 60 13 7/8" No MS20BC-A13PP-6000ZG $528.00
2" Brass 3-Copper 7500 480V/3PH 60 16 5/8" No MS20BC-A16KP-7500ZG $566.00
2" Brass 3-Copper 9000 480V/3PH 60 19 3/8" No MS20BC-A19FP-9000ZG $592.00
2" Brass 3-Copper 12000 480V/3PH 60 24 7/8" No MS20BC-A24PP-120CZG $676.00
2" Brass 3-Copper 15000 480V/3PH 60 30 3/8" No MS20BC-A30FP-150CZG $772.00
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" Brass 3-Copper 3000 240V/3PH 60 8 1/4" No MS2HBC-A08DL-3000ZG $514.00
2 1/2" Brass 3-Copper 4500 240V/3PH 60 11" No MS2HBC-A110L-4500ZG $588.00
2 1/2" Brass 3-Copper 6000 240V/3PH 60 13 3/4" No MS2HBC-A13ML-6000ZG $657.00
2 1/2" Brass 3-Copper 7500 240V/3PH 60 16 1/2" No MS2HBC-A16HL-7500ZG $705.00
2 1/2" Brass 3-Copper 9000 240V/3PH 60 19 1/4" No MS2HBC-A19DL-9000ZG $787.00
2 1/2" Brass 3-Copper 12000 240V/3PH 60 24 3/4" No MS2HBC-A24ML-120CZG $891.00
2 1/2" Brass 3-Copper 15000 240V/3PH 60 30 1/4" No MS2HBC-A30DL-150CZG $1006.00
2 1/2" Brass 3-Copper 18000 240V/3PH 60 35 3/4" No MS2HBC-A35ML-180CZG $1118.00
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" Brass 3-Copper 3000 480V/3PH 60 8 1/4" No MS2HBC-A08DP-3000ZG $514.00
2 1/2" Brass 3-Copper 4500 480V/3PH 60 11" No MS2HBC-A110P-4500ZG $588.00
2 1/2" Brass 3-Copper 6000 480V/3PH 60 13 3/4" No MS2HBC-A13MP-6000ZG $657.00
2 1/2" Brass 3-Copper 7500 480V/3PH 60 16 1/2" No MS2HBC-A16HP-7500ZG $705.00
2 1/2" Brass 3-Copper 9000 480V/3PH 60 19 1/4" No MS2HBC-A19DP-9000ZG $787.00
2 1/2" Brass 3-Copper 12000 480V/3PH 60 24 3/4" No MS2HBC-A24MP-120CZG $891.00
2 1/2" Brass 3-Copper 15000 480V/3PH 60 30 1/4" No MS2HBC-A30DP-150CZG $1006.00
2 1/2" Brass 3-Copper 18000 480V/3PH 60 35 3/4" No MS2HBC-A35MP-180CZG $1118.00

APPLICATION: PROCESS WATER

NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" 304 Stainless Steel 3-840 Incoloy 3000 240V/3PH 48 10 1/4" No MS2044-A10DL-3000ZG $744.00
2" 304 Stainless Steel 3-840 Incoloy 4500 240V/3PH 48 14" No MS2044-A140L-4500ZG $817.00
2" 304 Stainless Steel 3-840 Incoloy 6000 240V/3PH 48 17 5/8" No MS2044-A17KL-6000ZG $891.00
2" 304 Stainless Steel 3-840 Incoloy 7500 240V/3PH 48 21 1/4" No MS2044-A21DL-7500ZG $987.00
2" 304 Stainless Steel 3-840 Incoloy 9000 240V/3PH 48 25" No MS2044-A250L-9000ZG $1075.00
2" 304 Stainless Steel 3-840 Incoloy 12000 240V/3PH 48 32 3/8" No MS2044-A32FL-120CZG $1256.00
2" 304 Stainless Steel 3-840 Incoloy 15000 240V/3PH 48 39 5/8" No MS2044-A39KL-150CZG $1456.00
2" 304 Stainless Steel 3-840 Incoloy 18000 240V/3PH 48 47" No MS2044-A470L-180CZG $1609.00
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" 304 Stainless Steel 3-840 Incoloy 3000 480V/3PH 48 10 1/4" No MS2044-A10DP-3000ZG $744.00
2" 304 Stainless Steel 3-840 Incoloy 4500 480V/3PH 48 14" No MS2044-A140P-4500ZG $817.00
2" 304 Stainless Steel 3-840 Incoloy 6000 480V/3PH 48 17 5/8" No MS2044-A17KP-6000ZG $891.00
2" 304 Stainless Steel 3-840 Incoloy 7500 480V/3PH 48 21 1/4" No MS2044-A21DP-7500ZG $987.00
2" 304 Stainless Steel 3-840 Incoloy 9000 480V/3PH 48 25" No MS2044-A250P-9000ZG $1075.00
2" 304 Stainless Steel 3-840 Incoloy 12000 480V/3PH 48 32 3/8" No MS2044-A32FP-120CZG $1256.00
2" 304 Stainless Steel 3-840 Incoloy 15000 480V/3PH 48 39 5/8" No MS2044-A39KP-150CZG $1456.00
2" 304 Stainless Steel 3-840 Incoloy 18000 480V/3PH 48 47" No MS2044-A470P-180CZG $1609.00
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" 304 Stainless Steel 3-840 Incoloy 3000 240V/3PH 48 10 1/8" No MS2H44-A10BL-3000ZG $766.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 4500 240V/3PH 48 13 7/8" No MS2H44-A13PL-4500ZG $848.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 6000 240V/3PH 48 17 1/2" No MS2H44-A17HL-6000ZG $919.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 7500 240V/3PH 48 21 1/8" No MS2H44-A21BL-7500ZG $1017.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 9000 240V/3PH 48 24 7/8" No MS2H44-A24PL-9000ZG $1120.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 12000 240V/3PH 48 32 1/4" No MS2H44-A32DL-120CZG $1309.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 15000 240V/3PH 48 39 1/2" No MS2H44-A39HL-150CZG $1506.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 18000 240V/3PH 48 46 7/8" No MS2H44-A46PL-180CZG $1682.00
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" 304 Stainless Steel 3-840 Incoloy 3000 480V/3PH 48 10 1/8" No MS2H44-A10BP-3000ZG $766.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 4500 480V/3PH 48 13 7/8" No MS2H44-A13PP-4500ZG $848.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 6000 480V/3PH 48 17 1/2" No MS2H44-A17HP-6000ZG $919.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 7500 480V/3PH 48 21 1/8" No MS2H44-A21BP-7500ZG $1017.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 9000 480V/3PH 48 24 7/8" No MS2H44-A24PP-9000ZG $1120.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 12000 480V/3PH 48 32 1/4" No MS2H44-A32DP-120CZG $1309.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 15000 480V/3PH 48 39 1/2" No MS2H44-A39HP-150CZG $1506.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 18000 480V/3PH 48 46 7/8" No MS2H44-A46PP-180CZG $1682.00

APPLICATION: FORCED AIR AND GASES, CAUSTIC SOLUTIONS, DEGREASING SOLUTIONS

NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" 304 Stainless Steel 3-840 Incoloy 1500 240V/3PH 23 10 1/4" No MS2044-A10DL-1500ZG $744.00
2" 304 Stainless Steel 3-840 Incoloy 3000 240V/3PH 23 17 5/8" No MS2044-A17KL-3000ZG $891.00
2" 304 Stainless Steel 3-840 Incoloy 4500 240V/3PH 23 25" No MS2044-A250L-4500ZG $1075.00
2" 304 Stainless Steel 3-840 Incoloy 6000 240V/3PH 23 32 3/8" No MS2044-A32FL-6000ZG $1256.00
2" 304 Stainless Steel 3-840 Incoloy 7500 240V/3PH 23 39 5/8" No MS2044-A39KL-7500ZG $1443.00
2" 304 Stainless Steel 3-840 Incoloy 9000 240V/3PH 23 47" No MS2044-A470L-9000ZG $1609.00
2" 304 Stainless Steel 3-840 Incoloy 12000 240V/3PH 23 61 3/4" No MS2044-A61ML-120CZG $1814.00
2" 304 Stainless Steel 3-840 Incoloy 15000 240V/3PH 23 76 3/8" No MS2044-A76FL-150CZG $1978.00
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" 304 Stainless Steel 3-840 Incoloy 1500 480V/3PH 23 10 1/4" No MS2044-A10DP-1500ZG $744.00
2" 304 Stainless Steel 3-840 Incoloy 3000 480V/3PH 23 17 5/8" No MS2044-A17KP-3000ZG $891.00
2" 304 Stainless Steel 3-840 Incoloy 4500 480V/3PH 23 25" No MS2044-A250P-4500ZG $1075.00
2" 304 Stainless Steel 3-840 Incoloy 6000 480V/3PH 23 32 3/8" No MS2044-A32FP-6000ZG $1256.00
2" 304 Stainless Steel 3-840 Incoloy 7500 480V/3PH 23 39 5/8" No MS2044-A39KP-7500ZG $1443.00
2" 304 Stainless Steel 3-840 Incoloy 9000 480V/3PH 23 47" No MS2044-A470P-9000ZG $1609.00
2" 304 Stainless Steel 3-840 Incoloy 12000 480V/3PH 23 61 3/4" No MS2044-A61MP-120CZG $1814.00
2" 304 Stainless Steel 3-840 Incoloy 15000 480V/3PH 23 76 3/8" No MS2044-A76FP-150CZG $1978.00
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" 304 Stainless Steel 3-840 Incoloy 3000 240V/3PH 23 17 1/2" No MS2H44-A17HL-3000ZG $919.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 4500 240V/3PH 23 24 7/8" No MS2H44-A24PL-4500ZG $1120.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 6000 240V/3PH 23 32 1/4" No MS2H44-A32DL-6000ZG $1309.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 7500 240V/3PH 23 39 1/2" No MS2H44-A39HL-7500ZG $1506.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 9000 240V/3PH 23 46 7/8" No MS2H44-A46PL-9000ZG $1682.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 12000 240V/3PH 23 61 5/8" No MS2H44-A61KL-120CZG $1857.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 15000 240V/3PH 23 76 1/4" No MS2H44-A76DL-150CZG $2027.00
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" 304 Stainless Steel 3-840 Incoloy 3000 480V/3PH 23 17 1/2" No MS2H44-A17HP-3000ZG $919.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 4500 480V/3PH 23 24 7/8" No MS2H44-A24PP-4500ZG $1120.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 6000 480V/3PH 23 32 1/4" No MS2H44-A32DP-6000ZG $1309.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 7500 480V/3PH 23 39 1/2" No MS2H44-A39HP-7500ZG $1506.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 9000 480V/3PH 23 46 7/8" No MS2H44-A46PP-9000ZG $1682.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 12000 480V/3PH 23 61 5/8" No MS2H44-A61KP-120CZG $1857.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 15000 480V/3PH 23 76 1/4" No MS2H44-A76DP-150CZG $2027.00

APPLICATION: LIGHTWEIGHT OILS, DEGREASING SOLUTIONS, HEAT TRANSFER OILS

NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" Steel 3-Steel 1500 240V/3PH 23 10 1/4" No MS20SB-A10DL-1500ZG $549.00
2" Steel 3-Steel 3000 240V/3PH 23 17 5/8" No MS20SB-A17KL-3000ZG $600.00
2" Steel 3-Steel 4500 240V/3PH 23 25" No MS20SB-A250L-4500ZG $699.00
2" Steel 3-Steel 6000 240V/3PH 23 32 3/8" No MS20SB-A32FL-6000ZG $794.00
2" Steel 3-Steel 7500 240V/3PH 23 39 5/8" No MS20SB-A39KL-7500ZG $891.00
2" Steel 3-Steel 9000 240V/3PH 23 47" No MS20SB-A470L-9000ZG $991.00
2" Steel 3-Steel 12000 240V/3PH 23 61 3/4" No MS20SB-A61ML-120CZG $1093.00
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" Steel 3-Steel 1500 480V/3PH 23 10 1/4" No MS20SB-A10DP-1500ZG $549.00
2" Steel 3-Steel 3000 480V/3PH 23 17 5/8" No MS20SB-A17KP-3000ZG $600.00
2" Steel 3-Steel 4500 480V/3PH 23 25" No MS20SB-A250P-4500ZG $699.00
2" Steel 3-Steel 6000 480V/3PH 23 32 3/8" No MS20SB-A32FP-6000ZG $794.00
2" Steel 3-Steel 7500 480V/3PH 23 39 5/8" No MS20SB-A39KP-7500ZG $891.00
2" Steel 3-Steel 9000 480V/3PH 23 47" No MS20SB-A470P-9000ZG $991.00
2" Steel 3-Steel 12000 480V/3PH 23 61 3/4" No MS20SB-A61MP-120CZG $1093.00
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" Steel 3-Steel 3000 240V/3PH 23 17 1/2" No MS2HSB-A17HL-3000ZG $646.00
2 1/2" Steel 3-Steel 4500 240V/3PH 23 24 7/8" No MS2HSB-A24PL-4500ZG $766.00
2 1/2" Steel 3-Steel 6000 240V/3PH 23 32 1/4" No MS2HSB-A32DL-6000ZG $888.00
2 1/2" Steel 3-Steel 7500 240V/3PH 23 39 1/2" No MS2HSB-A39HL-7500ZG $1011.00
2 1/2" Steel 3-Steel 9000 240V/3PH 23 46 7/8" No MS2HSB-A46PL-9000ZG $1109.00
2 1/2" Steel 3-Steel 12000 240V/3PH 23 61 5/8" No MS2HSB-A61KL-120CZG $1275.00
2 1/2" Steel 3-Steel 15000 240V/3PH 23 76 1/4" No MS2HSB-A76DL-150CZG $1486.00
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" Steel 3-Steel 3000 480V/3PH 23 17 1/2" No MS2HSB-A17HP-3000ZG $646.00
2 1/2" Steel 3-Steel 4500 480V/3PH 23 24 7/8" No MS2HSB-A24PP-4500ZG $766.00
2 1/2" Steel 3-Steel 6000 480V/3PH 23 32 1/4" No MS2HSB-A32DP-6000ZG $888.00
2 1/2" Steel 3-Steel 7500 480V/3PH 23 39 1/2" No MS2HSB-A39HP-7500ZG $1011.00
2 1/2" Steel 3-Steel 9000 480V/3PH 23 46 7/8" No MS2HSB-A46PP-9000ZG $1109.00
2 1/2" Steel 3-Steel 12000 480V/3PH 23 61 5/8" No MS2HSB-A61KP-120CZG $1275.00
2 1/2" Steel 3-Steel 15000 480V/3PH 23 76 1/4" No MS2HSB-A76DP-150CZG $1486.00

APPLICATION: MILDLY CORROSIVE SOLUTIONS, MEDIUM WEIGHT OILS, HEAT TRANSFER OILS

NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" 304 Stainless Steel 3-840 Incoloy 1000 240V/3PH 16 10 1/4" No MS2044-A10DL-1000ZG $744.00
2" 304 Stainless Steel 3-840 Incoloy 1500 240V/3PH 16 14" No MS2044-A140L-1500ZG $817.00
2" 304 Stainless Steel 3-840 Incoloy 2000 240V/3PH 16 17 5/8" No MS2044-A17KL-2000ZG $891.00
2" 304 Stainless Steel 3-840 Incoloy 2500 240V/3PH 16 21 1/4" No MS2044-A21DL-2500ZG $987.00
2" 304 Stainless Steel 3-840 Incoloy 3000 240V/3PH 16 25" No MS2044-A250L-3000ZG $1075.00
2" 304 Stainless Steel 3-840 Incoloy 4000 240V/3PH 16 32 3/8" No MS2044-A32FL-4000ZG $1256.00
2" 304 Stainless Steel 3-840 Incoloy 5000 240V/3PH 16 39 5/8" No MS2044-A39KL-5000ZG $1443.00
2" 304 Stainless Steel 3-840 Incoloy 6000 240V/3PH 16 47" No MS2044-A470L-6000ZG $1609.00
2" 304 Stainless Steel 3-840 Incoloy 8000 240V/3PH 16 61 3/4" No MS2044-A61ML-8000ZG $1814.00
2" 304 Stainless Steel 3-840 Incoloy 10000 240V/3PH 16 76 3/8" No MS2044-A76FL-100CZG $1978.00
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" 304 Stainless Steel 3-840 Incoloy 1000 480V/3PH 16 10 1/4" No MS2044-A10DP-1000ZG $744.00
2" 304 Stainless Steel 3-840 Incoloy 1500 480V/3PH 16 14" No MS2044-A140P-1500ZG $817.00
2" 304 Stainless Steel 3-840 Incoloy 2000 480V/3PH 16 17 5/8" No MS2044-A17KP-2000ZG $891.00
2" 304 Stainless Steel 3-840 Incoloy 2500 480V/3PH 16 21 1/4" No MS2044-A21DP-2500ZG $987.00
2" 304 Stainless Steel 3-840 Incoloy 3000 480V/3PH 16 25" No MS2044-A250P-3000ZG $1075.00
2" 304 Stainless Steel 3-840 Incoloy 4000 480V/3PH 16 32 3/8" No MS2044-A32FP-4000ZG $1256.00
2" 304 Stainless Steel 3-840 Incoloy 5000 480V/3PH 16 39 5/8" No MS2044-A39KP-5000ZG $1443.00
2" 304 Stainless Steel 3-840 Incoloy 6000 480V/3PH 16 47" No MS2044-A470P-6000ZG $1609.00
2" 304 Stainless Steel 3-840 Incoloy 8000 480V/3PH 16 61 3/4" No MS2044-A61MP-8000ZG $1814.00
2" 304 Stainless Steel 3-840 Incoloy 10000 480V/3PH 16 76 3/8" No MS2044-A76FP-100CZG $1978.00
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" 304 Stainless Steel 3-840 Incoloy 1000 240V/3PH 16 10 1/8" No MS2H44-A10BL-1000ZG $766.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 1500 240V/3PH 16 13 7/8" No MS2H44-A13PL-1500ZG $848.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 2000 240V/3PH 16 17 1/2" No MS2H44-A17HL-2000ZG $919.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 2500 240V/3PH 16 21 1/8" No MS2H44-A21BL-2500ZG $1017.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 3000 240V/3PH 16 24 7/8" No MS2H44-A24PL-3000ZG $1120.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 4000 240V/3PH 16 32 1/4" No MS2H44-A32DL-4000ZG $1309.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 5000 240V/3PH 16 39 1/2" No MS2H44-A39HL-5000ZG $1506.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 6000 240V/3PH 16 46 7/8" No MS2H44-A46PL-6000ZG $1682.00
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" 304 Stainless Steel 3-840 Incoloy 1000 480V/3PH 16 10 1/8" No MS2H44-A10BP-1000ZG $766.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 1500 480V/3PH 16 13 7/8" No MS2H44-A13PP-1500ZG $848.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 2000 480V/3PH 16 17 1/2" No MS2H44-A17HP-2000ZG $919.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 2500 480V/3PH 16 21 1/8" No MS2H44-A21BP-2500ZG $1017.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 3000 480V/3PH 16 24 7/8" No MS2H44-A24PP-3000ZG $1120.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 4000 480V/3PH 16 32 1/4" No MS2H44-A32DP-4000ZG $1309.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 5000 480V/3PH 16 39 1/2" No MS2H44-A39HP-5000ZG $1506.00
2 1/2" 304 Stainless Steel 3-840 Incoloy 6000 480V/3PH 16 46 7/8" No MS2H44-A46PP-6000ZG $1682.00

APPLICATION: MEDIUM WEIGHT OILS, HEAT TRANSFER OILS, PARAFFIN

NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" Steel 3-Steel 1000 240V/3PH 16 10 1/4" No MS20SB-A10DL-1000ZG $549.00
2" Steel 3-Steel 1500 240V/3PH 16 14" No MS20SB-A140L-1500ZG $573.00
2" Steel 3-Steel 2000 240V/3PH 16 17 5/8" No MS20SB-A17KL-2000ZG $600.00
2" Steel 3-Steel 2500 240V/3PH 16 21 1/4" No MS20SB-A21DL-2500ZG $613.00
2" Steel 3-Steel 3000 240V/3PH 16 25" No MS20SB-A250L-3000ZG $699.00
2" Steel 3-Steel 4000 240V/3PH 16 32 3/8" No MS20SB-A32FL-4000ZG $794.00
2" Steel 3-Steel 5000 240V/3PH 16 39 5/8" No MS20SB-A39KL-5000ZG $891.00
2" Steel 3-Steel 6000 240V/3PH 16 47" No MS20SB-A470L-6000ZG $991.00
2" Steel 3-Steel 8000 240V/3PH 16 61 3/4" No MS20SB-A61ML-8000ZG $1018.00
2" Steel 3-Steel 10000 240V/3PH 16 76 3/8" No MS20SB-A76FL-100CZG $1188.00
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" Steel 3-Steel 1000 480V/3PH 16 10 1/4" No MS20SB-A10DP-1000ZG $549.00
2" Steel 3-Steel 1500 480V/3PH 16 14" No MS20SB-A140P-1500ZG $573.00
2" Steel 3-Steel 2000 480V/3PH 16 17 5/8" No MS20SB-A17KP-2000ZG $600.00
2" Steel 3-Steel 2500 480V/3PH 16 21 1/4" No MS20SB-A21DP-2500ZG $613.00
2" Steel 3-Steel 3000 480V/3PH 16 25" No MS20SB-A250P-3000ZG $699.00
2" Steel 3-Steel 4000 480V/3PH 16 32 3/8" No MS20SB-A32FP-4000ZG $794.00
2" Steel 3-Steel 5000 480V/3PH 16 39 5/8" No MS20SB-A39KP-5000ZG $891.00
2" Steel 3-Steel 6000 480V/3PH 16 47" No MS20SB-A470P-6000ZG $991.00
2" Steel 3-Steel 8000 480V/3PH 16 61 3/4" No MS20SB-A61MP-8000ZG $1018.00
2" Steel 3-Steel 10000 480V/3PH 16 76 3/8" No MS20SB-A76FP-100CZG $1188.00
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers
2 1/2" Steel 3-Steel 1000 240V/3PH 16 10 1/8" No MS2HSB-A10BL-1000ZG
2 1/2" Steel 3-Steel 1500 240V/3PH 16 13 7/8" No MS2HSB-A13PL-1500ZG
2 1/2" Steel 3-Steel 2000 240V/3PH 16 17 1/2" No MS2HSB-A17HL-2000ZG
2 1/2" Steel 3-Steel 2500 240V/3PH 16 21 1/8" No MS2HSB-A21BL-2500ZG
2 1/2" Steel 3-Steel 3000 240V/3PH 16 24 7/8" No MS2HSB-A24PL-3000ZG
2 1/2" Steel 3-Steel 4000 240V/3PH 16 32 1/4" No MS2HSB-A32DL-4000ZG
2 1/2" Steel 3-Steel 5000 240V/3PH 16 39 1/2" No MS2HSB-A39HL-5000ZG
2 1/2" Steel 3-Steel 6000 240V/3PH 16 46 7/8" No MS2HSB-A46PL-6000ZG
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers
2 1/2" Steel 3-Steel 1000 480V/3PH 16 10 1/8" No MS2HSB-A10BP-1000ZG
2 1/2" Steel 3-Steel 1500 480V/3PH 16 13 7/8" No MS2HSB-A13PP-1500ZG
2 1/2" Steel 3-Steel 2000 480V/3PH 16 17 1/2" No MS2HSB-A17HP-2000ZG
2 1/2" Steel 3-Steel 2500 480V/3PH 16 21 1/8" No MS2HSB-A21BP-2500ZG
2 1/2" Steel 3-Steel 3000 480V/3PH 16 24 7/8" No MS2HSB-A24PP-3000ZG
2 1/2" Steel 3-Steel 4000 480V/3PH 16 32 1/4" No MS2HSB-A32DP-4000ZG
2 1/2" Steel 3-Steel 5000 480V/3PH 16 39 1/2" No MS2HSB-A39HP-5000ZG
2 1/2" Steel 3-Steel 6000 480V/3PH 16 46 7/8" No MS2HSB-A46PP-6000ZG

Application: Bunker C and #6 Fuel Oils

NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers
2 1/2" Steel 3-Steel 1000 240V/3PH 8 17 1/2" No MS2HSB-A17HL-1000ZG
2 1/2" Steel 3-Steel 1500 240V/3PH 8 24 7/8" No MS2HSB-A24PL-1500ZG
2 1/2" Steel 3-Steel 2000 240V/3PH 8 32 1/4" No MS2HSB-A32DL-2000ZG
2 1/2" Steel 3-Steel 2500 240V/3PH 8 39 1/2" No MS2HSB-A39HL-2500ZG
2 1/2" Steel 3-Steel 3000 240V/3PH 8 47" No MS2HSB-A470L-3000ZG
2 1/2" Steel 3-Steel 4000 240V/3PH 8 61 5/8" No MS2HSB-A61KL-4000ZG
2 1/2" Steel 3-Steel 5000 240V/3PH 8 76 1/4" No MS2HSB-A76DL-5000ZG
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers
2 1/2" Steel 3-Steel 1000 480V/3PH 8 17 1/2" No MS2HSB-A17HP-1000ZG
2 1/2" Steel 3-Steel 1500 480V/3PH 8 24 7/8" No MS2HSB-A24PP-1500ZG
2 1/2" Steel 3-Steel 2000 480V/3PH 8 32 1/4" No MS2HSB-A32DP-2000ZG
2 1/2" Steel 3-Steel 2500 480V/3PH 8 39 1/2" No MS2HSB-A39HP-2500ZG
2 1/2" Steel 3-Steel 3000 480V/3PH 8 47" No MS2HSB-A470P-3000ZG
2 1/2" Steel 3-Steel 4000 480V/3PH 8 61 5/8" No MS2HSB-A61KP-4000ZG
2 1/2" Steel 3-Steel 5000 480V/3PH 8 76 1/4" No MS2HSB-A76DP-5000ZG



Screw Plug Immersion Heaters–NEMA 4 Enclosures 0-100°F Thermostat

Back to Top

APPLICATION: PROCESS WATER

NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" 304 Stainless Steel 3-840 Incoloy 3000 240V/3PH 48 10 1/4" No MS2044-A10DL-3000ZF $1413.16
2" 304 Stainless Steel 3-840 Incoloy 4500 240V/3PH 48 14" No MS2044-A140L-4500ZF $1488.35
2" 304 Stainless Steel 3-840 Incoloy 6000 240V/3PH 48 17 5/8" No MS2044-A17KL-6000ZF $1565.60
2" 304 Stainless Steel 3-840 Incoloy 7500 240V/3PH 48 21 1/4" No MS2044-A21DL-7500ZF $1663.45
2" 304 Stainless Steel 3-840 Incoloy 9000 240V/3PH 48 25" No MS2044-A250L-9000ZF $1754.09
2" 304 Stainless Steel 3-840 Incoloy 12000 240V/3PH 48 32 3/8" No MS2044-A32FL-120CZF $1941.55
2" 304 Stainless Steel 3-840 Incoloy 15000 240V/3PH 48 39 5/8" No MS2044-A39KL-150CZF $2146.52
2" 304 Stainless Steel 3-840 Incoloy 18000 240V/3PH 48 47" No MS2044-A470L-180CZF $2304.11
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" 304 Stainless Steel 3-840 Incoloy 3000 480V/3PH 48 10 1/4" No MS2044-A10DP-3000ZF $1413.16
2" 304 Stainless Steel 3-840 Incoloy 4500 480V/3PH 48 14" No MS2044-A140P-4500ZF $1488.35
2" 304 Stainless Steel 3-840 Incoloy 6000 480V/3PH 48 17 5/8" No MS2044-A17KP-6000ZF $1565.60
2" 304 Stainless Steel 3-840 Incoloy 7500 480V/3PH 48 21 1/4" No MS2044-A21DP-7500ZF $1663.45
2" 304 Stainless Steel 3-840 Incoloy 9000 480V/3PH 48 25" No MS2044-A250P-9000ZF $1754.09
2" 304 Stainless Steel 3-840 Incoloy 12000 480V/3PH 48 32 3/8" No MS2044-A32FP-120CZF $1941.55
2" 304 Stainless Steel 3-840 Incoloy 15000 480V/3PH 48 39 5/8" No MS2044-A39KP-150CZF $2146.52
2" 304 Stainless Steel 3-840 Incoloy 18000 480V/3PH 48 47" No MS2044-A470P-180CZF $2304.11
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" 304 Stainless Steel 3-840 Incoloy 3000 240V/3PH 48 10 1/8" No MS2H44-A10BL-3000ZF $1435.82
2 1/2" 304 Stainless Steel 3-840 Incoloy 4500 240V/3PH 48 13 7/8" No MS2H44-A13PL-4500ZF $1520.28
2 1/2" 304 Stainless Steel 3-840 Incoloy 6000 240V/3PH 48 17 1/2" No MS2H44-A17HL-6000ZF $1593.41
2 1/2" 304 Stainless Steel 3-840 Incoloy 7500 240V/3PH 48 21 1/8" No MS2H44-A21BL-7500ZF $1694.35
2 1/2" 304 Stainless Steel 3-840 Incoloy 9000 240V/3PH 48 24 7/8" No MS2H44-A24PL-9000ZF $1800.44
2 1/2" 304 Stainless Steel 3-840 Incoloy 12000 240V/3PH 48 32 1/4" No MS2H44-A32DL-120CZF $1995.11
2 1/2" 304 Stainless Steel 3-840 Incoloy 15000 240V/3PH 48 39 1/2" No MS2H44-A39HL-150CZF $2198.02
2 1/2" 304 Stainless Steel 3-840 Incoloy 18000 240V/3PH 48 46 7/8" No MS2H44-A46PL-180CZF $2379.30
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" 304 Stainless Steel 3-840 Incoloy 3000 480V/3PH 48 10 1/8" No MS2H44-A10BP-3000ZF $1435.82
2 1/2" 304 Stainless Steel 3-840 Incoloy 4500 480V/3PH 48 13 7/8" No MS2H44-A13PP-4500ZF $1520.28
2 1/2" 304 Stainless Steel 3-840 Incoloy 6000 480V/3PH 48 17 1/2" No MS2H44-A17HP-6000ZF $1593.41
2 1/2" 304 Stainless Steel 3-840 Incoloy 7500 480V/3PH 48 21 1/8" No MS2H44-A21BP-7500ZF $1694.35
2 1/2" 304 Stainless Steel 3-840 Incoloy 9000 480V/3PH 48 24 7/8" No MS2H44-A24PP-9000ZF $1800.44
2 1/2" 304 Stainless Steel 3-840 Incoloy 12000 480V/3PH 48 32 1/4" No MS2H44-A32DP-120CZF $1995.11
2 1/2" 304 Stainless Steel 3-840 Incoloy 15000 480V/3PH 48 39 1/2" No MS2H44-A39HP-150CZF $2198.02
2 1/2" 304 Stainless Steel 3-840 Incoloy 18000 480V/3PH 48 46 7/8" No MS2H44-A46PP-180CZF $2379.30

APPLICATION: FORCED AIR AND GASES, CAUSTIC SOLUTIONS, DEGREASING SOLUTIONS

NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" 304 Stainless Steel 3-840 Incoloy 1500 240V/3PH 23 10 1/4" No MS2044-A10DL-1500ZF $1413.16
2" 304 Stainless Steel 3-840 Incoloy 3000 240V/3PH 23 17 5/8" No MS2044-A17KL-3000ZF $1565.60
2" 304 Stainless Steel 3-840 Incoloy 4500 240V/3PH 23 25" No MS2044-A250L-4500ZF $1754.09
2" 304 Stainless Steel 3-840 Incoloy 6000 240V/3PH 23 32 3/8" No MS2044-A32FL-6000ZF $1941.55
2" 304 Stainless Steel 3-840 Incoloy 7500 240V/3PH 23 39 5/8" No MS2044-A39KL-7500ZF $2133.13
2" 304 Stainless Steel 3-840 Incoloy 9000 240V/3PH 23 47" No MS2044-A470L-9000ZF $2304.11
2" 304 Stainless Steel 3-840 Incoloy 12000 240V/3PH 23 61 3/4" No MS2044-A61ML-120CZF $2515.26
2" 304 Stainless Steel 3-840 Incoloy 15000 240V/3PH 23 76 3/8" No MS2044-A76FL-150CZF $2684.18
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" 304 Stainless Steel 3-840 Incoloy 1500 480V/3PH 23 10 1/4" No MS2044-A10DP-1500ZF $1413.16
2" 304 Stainless Steel 3-840 Incoloy 3000 480V/3PH 23 17 5/8" No MS2044-A17KP-3000ZF $1565.60
2" 304 Stainless Steel 3-840 Incoloy 4500 480V/3PH 23 25" No MS2044-A250P-4500ZF $1754.09
2" 304 Stainless Steel 3-840 Incoloy 6000 480V/3PH 23 32 3/8" No MS2044-A32FP-6000ZF $1941.55
2" 304 Stainless Steel 3-840 Incoloy 7500 480V/3PH 23 39 5/8" No MS2044-A39KP-7500ZF $2133.13
2" 304 Stainless Steel 3-840 Incoloy 9000 480V/3PH 23 47" No MS2044-A470P-9000ZF $2304.11
2" 304 Stainless Steel 3-840 Incoloy 12000 480V/3PH 23 61 3/4" No MS2044-A61MP-120CZF $2515.26
2" 304 Stainless Steel 3-840 Incoloy 15000 480V/3PH 23 76 3/8" No MS2044-A76FP-150CZF $2684.18
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" 304 Stainless Steel 3-840 Incoloy 3000 240V/3PH 23 17 1/2" No MS2H44-A17HL-3000ZF $1593.41
2 1/2" 304 Stainless Steel 3-840 Incoloy 4500 240V/3PH 23 24 7/8" No MS2H44-A24PL-4500ZF $1800.44
2 1/2" 304 Stainless Steel 3-840 Incoloy 6000 240V/3PH 23 32 1/4" No MS2H44-A32DL-6000ZF $1995.11
2 1/2" 304 Stainless Steel 3-840 Incoloy 7500 240V/3PH 23 39 1/2" No MS2H44-A39HL-7500ZF $2198.02
2 1/2" 304 Stainless Steel 3-840 Incoloy 9000 240V/3PH 23 46 7/8" No MS2H44-A46PL-9000ZF $2379.30
2 1/2" 304 Stainless Steel 3-840 Incoloy 12000 240V/3PH 23 61 5/8" No MS2H44-A61KL-120CZF $2559.55
2 1/2" 304 Stainless Steel 3-840 Incoloy 15000 240V/3PH 23 76 1/4" No MS2H44-A76DL-150CZF $2734.65
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" 304 Stainless Steel 3-840 Incoloy 3000 480V/3PH 23 17 1/2" No MS2H44-A17HP-3000ZF $1593.41
2 1/2" 304 Stainless Steel 3-840 Incoloy 4500 480V/3PH 23 24 7/8" No MS2H44-A24PP-4500ZF $1800.44
2 1/2" 304 Stainless Steel 3-840 Incoloy 6000 480V/3PH 23 32 1/4" No MS2H44-A32DP-6000ZF $1995.11
2 1/2" 304 Stainless Steel 3-840 Incoloy 7500 480V/3PH 23 39 1/2" No MS2H44-A39HP-7500ZF $2198.02
2 1/2" 304 Stainless Steel 3-840 Incoloy 9000 480V/3PH 23 46 7/8" No MS2H44-A46PP-9000ZF $2379.30
2 1/2" 304 Stainless Steel 3-840 Incoloy 12000 480V/3PH 23 61 5/8" No MS2H44-A61KP-120CZF $2559.55
2 1/2" 304 Stainless Steel 3-840 Incoloy 15000 480V/3PH 23 76 1/4" No MS2H44-A76DP-150CZF $2734.65

APPLICATION: LIGHTWEIGHT OILS, DEGREASING SOLUTIONS, HEAT TRANSFER OILS

NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" Steel 3-Steel 1500 240V/3PH 23 10 1/4" No MS20SB-A10DL-1500ZF $1212.31
2" Steel 3-Steel 3000 240V/3PH 23 17 5/8" No MS20SB-A17KL-3000ZF $1264.84
2" Steel 3-Steel 4500 240V/3PH 23 25" No MS20SB-A250L-4500ZF $1366.81
2" Steel 3-Steel 6000 240V/3PH 23 32 3/8" No MS20SB-A32FL-6000ZF $1464.66
2" Steel 3-Steel 7500 240V/3PH 23 39 5/8" No MS20SB-A39KL-7500ZF $1565.60
2" Steel 3-Steel 9000 240V/3PH 23 47" No MS20SB-A470L-9000ZF $1667.57
2" Steel 3-Steel 12000 240V/3PH 23 61 3/4" No MS20SB-A61ML-120CZF $1772.63
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" Steel 3-Steel 1500 480V/3PH 23 10 1/4" No MS20SB-A10DP-1500ZF $1212.31
2" Steel 3-Steel 3000 480V/3PH 23 17 5/8" No MS20SB-A17KP-3000ZF $1264.84
2" Steel 3-Steel 4500 480V/3PH 23 25" No MS20SB-A250P-4500ZF $1366.81
2" Steel 3-Steel 6000 480V/3PH 23 32 3/8" No MS20SB-A32FP-6000ZF $1464.66
2" Steel 3-Steel 7500 480V/3PH 23 39 5/8" No MS20SB-A39KP-7500ZF $1565.60
2" Steel 3-Steel 9000 480V/3PH 23 47" No MS20SB-A470P-9000ZF $1667.57
2" Steel 3-Steel 12000 480V/3PH 23 61 3/4" No MS20SB-A61MP-120CZF $1772.63
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" Steel 3-Steel 3000 240V/3PH 23 17 1/2" No MS2HSB-A17HL-3000ZF $1312.22
2 1/2" Steel 3-Steel 4500 240V/3PH 23 24 7/8" No MS2HSB-A24PL-4500ZF $1435.82
2 1/2" Steel 3-Steel 6000 240V/3PH 23 32 1/4" No MS2HSB-A32DL-6000ZF $1561.48
2 1/2" Steel 3-Steel 7500 240V/3PH 23 39 1/2" No MS2HSB-A39HL-7500ZF $1688.17
2 1/2" Steel 3-Steel 9000 240V/3PH 23 46 7/8" No MS2HSB-A46PL-9000ZF $1789.11
2 1/2" Steel 3-Steel 12000 240V/3PH 23 61 5/8" No MS2HSB-A61KL-120CZF $1960.09
2 1/2" Steel 3-Steel 15000 240V/3PH 23 76 1/4" No MS2HSB-A76DL-150CZF $2177.42
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" Steel 3-Steel 3000 480V/3PH 23 17 1/2" No MS2HSB-A17HP-3000ZF $1312.22
2 1/2" Steel 3-Steel 4500 480V/3PH 23 24 7/8" No MS2HSB-A24PP-4500ZF $1435.82
2 1/2" Steel 3-Steel 6000 480V/3PH 23 32 1/4" No MS2HSB-A32DP-6000ZF $1561.48
2 1/2" Steel 3-Steel 7500 480V/3PH 23 39 1/2" No MS2HSB-A39HP-7500ZF $1688.17
2 1/2" Steel 3-Steel 9000 480V/3PH 23 46 7/8" No MS2HSB-A46PP-9000ZF $1789.11
2 1/2" Steel 3-Steel 12000 480V/3PH 23 61 5/8" No MS2HSB-A61KP-120CZF $1960.09
2 1/2" Steel 3-Steel 15000 480V/3PH 23 76 1/4" No MS2HSB-A76DP-150CZF $2177.42

APPLICATION: MILDLY CORROSIVE SOLUTIONS, MEDIUM WEIGHT OILS, HEAT TRANSFER OILS

NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" 304 Stainless Steel 3-840 Incoloy 1000 240V/3PH 16 10 1/4" No MS2044-A10DL-1000ZF $1413.16
2" 304 Stainless Steel 3-840 Incoloy 1500 240V/3PH 16 14" No MS2044-A140L-1500ZF $1488.35
2" 304 Stainless Steel 3-840 Incoloy 2000 240V/3PH 16 17 5/8" No MS2044-A17KL-2000ZF $1565.60
2" 304 Stainless Steel 3-840 Incoloy 2500 240V/3PH 16 21 1/4" No MS2044-A21DL-2500ZF $1663.45
2" 304 Stainless Steel 3-840 Incoloy 3000 240V/3PH 16 25" No MS2044-A250L-3000ZF $1754.09
2" 304 Stainless Steel 3-840 Incoloy 4000 240V/3PH 16 32 3/8" No MS2044-A32FL-4000ZF $1941.55
2" 304 Stainless Steel 3-840 Incoloy 5000 240V/3PH 16 39 5/8" No MS2044-A39KL-5000ZF $2133.13
2" 304 Stainless Steel 3-840 Incoloy 6000 240V/3PH 16 47" No MS2044-A470L-6000ZF $2304.11
2" 304 Stainless Steel 3-840 Incoloy 8000 240V/3PH 16 61 3/4" No MS2044-A61ML-8000ZF $2515.26
2" 304 Stainless Steel 3-840 Incoloy 10000 240V/3PH 16 76 3/8" No MS2044-A76FL-100CZF $2684.18
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" 304 Stainless Steel 3-840 Incoloy 1000 480V/3PH 16 10 1/4" No MS2044-A10DP-1000ZF $1413.16
2" 304 Stainless Steel 3-840 Incoloy 1500 480V/3PH 16 14" No MS2044-A140P-1500ZF $1488.35
2" 304 Stainless Steel 3-840 Incoloy 2000 480V/3PH 16 17 5/8" No MS2044-A17KP-2000ZF $1565.60
2" 304 Stainless Steel 3-840 Incoloy 2500 480V/3PH 16 21 1/4" No MS2044-A21DP-2500ZF $1663.45
2" 304 Stainless Steel 3-840 Incoloy 3000 480V/3PH 16 25" No MS2044-A250P-3000ZF $1754.09
2" 304 Stainless Steel 3-840 Incoloy 4000 480V/3PH 16 32 3/8" No MS2044-A32FP-4000ZF $1941.55
2" 304 Stainless Steel 3-840 Incoloy 5000 480V/3PH 16 39 5/8" No MS2044-A39KP-5000ZF $2133.13
2" 304 Stainless Steel 3-840 Incoloy 6000 480V/3PH 16 47" No MS2044-A470P-6000ZF $2304.11
2" 304 Stainless Steel 3-840 Incoloy 8000 480V/3PH 16 61 3/4" No MS2044-A61MP-8000ZF $2515.26
2" 304 Stainless Steel 3-840 Incoloy 10000 480V/3PH 16 76 3/8" No MS2044-A76FP-100CZF $2684.18
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" 304 Stainless Steel 3-840 Incoloy 1000 240V/3PH 16 10 1/8" No MS2H44-A10BL-1000ZF $1435.82
2 1/2" 304 Stainless Steel 3-840 Incoloy 1500 240V/3PH 16 13 7/8" No MS2H44-A13PL-1500ZF $1520.28
2 1/2" 304 Stainless Steel 3-840 Incoloy 2000 240V/3PH 16 17 1/2" No MS2H44-A17HL-2000ZF $1593.41
2 1/2" 304 Stainless Steel 3-840 Incoloy 2500 240V/3PH 16 21 1/8" No MS2H44-A21BL-2500ZF $1694.35
2 1/2" 304 Stainless Steel 3-840 Incoloy 3000 240V/3PH 16 24 7/8" No MS2H44-A24PL-3000ZF $1800.44
2 1/2" 304 Stainless Steel 3-840 Incoloy 4000 240V/3PH 16 32 1/4" No MS2H44-A32DL-4000ZF $1995.11
2 1/2" 304 Stainless Steel 3-840 Incoloy 5000 240V/3PH 16 39 1/2" No MS2H44-A39HL-5000ZF $2198.02
2 1/2" 304 Stainless Steel 3-840 Incoloy 6000 240V/3PH 16 46 7/8" No MS2H44-A46PL-6000ZF $2379.30
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" 304 Stainless Steel 3-840 Incoloy 1000 480V/3PH 16 10 1/8" No MS2H44-A10BP-1000ZF $1435.82
2 1/2" 304 Stainless Steel 3-840 Incoloy 1500 480V/3PH 16 13 7/8" No MS2H44-A13PP-1500ZF $1520.28
2 1/2" 304 Stainless Steel 3-840 Incoloy 2000 480V/3PH 16 17 1/2" No MS2H44-A17HP-2000ZF $1593.41
2 1/2" 304 Stainless Steel 3-840 Incoloy 2500 480V/3PH 16 21 1/8" No MS2H44-A21BP-2500ZF $1694.35
2 1/2" 304 Stainless Steel 3-840 Incoloy 3000 480V/3PH 16 24 7/8" No MS2H44-A24PP-3000ZF $1800.44
2 1/2" 304 Stainless Steel 3-840 Incoloy 4000 480V/3PH 16 32 1/4" No MS2H44-A32DP-4000ZF $1995.11
2 1/2" 304 Stainless Steel 3-840 Incoloy 5000 480V/3PH 16 39 1/2" No MS2H44-A39HP-5000ZF $2198.02
2 1/2" 304 Stainless Steel 3-840 Incoloy 6000 480V/3PH 16 46 7/8" No MS2H44-A46PP-6000ZF $2379.30

APPLICATION: MEDIUM WEIGHT OILS, HEAT TRANSFER OILS, PARAFFIN

NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" Steel 3-Steel 1000 240V/3PH 16 10 1/4" No MS20SB-A10DL-1000ZF $1212.31
2" Steel 3-Steel 1500 240V/3PH 16 14" No MS20SB-A140L-1500ZF $1237.03
2" Steel 3-Steel 2000 240V/3PH 16 17 5/8" No MS20SB-A17KL-2000ZF $1264.84
2" Steel 3-Steel 2500 240V/3PH 16 21 1/4" No MS20SB-A21DL-2500ZF $1278.23
2" Steel 3-Steel 3000 240V/3PH 16 25" No MS20SB-A250L-3000ZF $1366.81
2" Steel 3-Steel 4000 240V/3PH 16 32 3/8" No MS20SB-A32FL-4000ZF $1464.66
2" Steel 3-Steel 5000 240V/3PH 16 39 5/8" No MS20SB-A39KL-5000ZF $1565.60
2" Steel 3-Steel 6000 240V/3PH 16 47" No MS20SB-A470L-6000ZF $1667.57
2" Steel 3-Steel 8000 240V/3PH 16 61 3/4" No MS20SB-A61ML-8000ZF $1695.38
2" Steel 3-Steel 10000 240V/3PH 16 76 3/8" No MS20SB-A76FL-100CZF $1870.48
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" Steel 3-Steel 1000 480V/3PH 16 10 1/4" No MS20SB-A10DP-1000ZF $1212.31
2" Steel 3-Steel 1500 480V/3PH 16 14" No MS20SB-A140P-1500ZF $1237.03
2" Steel 3-Steel 2000 480V/3PH 16 17 5/8" No MS20SB-A17KP-2000ZF $1264.84
2" Steel 3-Steel 2500 480V/3PH 16 21 1/4" No MS20SB-A21DP-2500ZF $1278.23
2" Steel 3-Steel 3000 480V/3PH 16 25" No MS20SB-A250P-3000ZF $1366.81
2" Steel 3-Steel 4000 480V/3PH 16 32 3/8" No MS20SB-A32FP-4000ZF $1464.66
2" Steel 3-Steel 5000 480V/3PH 16 39 5/8" No MS20SB-A39KP-5000ZF $1565.60
2" Steel 3-Steel 6000 480V/3PH 16 47" No MS20SB-A470P-6000ZF $1667.57
2" Steel 3-Steel 8000 480V/3PH 16 61 3/4" No MS20SB-A61MP-8000ZF $1695.38
2" Steel 3-Steel 10000 480V/3PH 16 76 3/8" No MS20SB-A76FP-100CZF $1870.48
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" Steel 3-Steel 1000 240V/3PH 16 10 1/8" No MS2HSB-A10BL-1000ZF $1224.67
2 1/2" Steel 3-Steel 1500 240V/3PH 16 13 7/8" No MS2HSB-A13PL-1500ZF $1264.84
2 1/2" Steel 3-Steel 2000 240V/3PH 16 17 1/2" No MS2HSB-A17HL-2000ZF $1312.22
2 1/2" Steel 3-Steel 2500 240V/3PH 16 21 1/8" No MS2HSB-A21BL-2500ZF $1372.99
2 1/2" Steel 3-Steel 3000 240V/3PH 16 24 7/8" No MS2HSB-A24PL-3000ZF $1435.82
2 1/2" Steel 3-Steel 4000 240V/3PH 16 32 1/4" No MS2HSB-A32DL-4000ZF $1561.48
2 1/2" Steel 3-Steel 5000 240V/3PH 16 39 1/2" No MS2HSB-A39HL-5000ZF $1688.17
2 1/2" Steel 3-Steel 6000 240V/3PH 16 46 7/8" No MS2HSB-A46PL-6000ZF $1789.11
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" Steel 3-Steel 1000 480V/3PH 16 10 1/8" No MS2HSB-A10BP-1000ZF $1224.67
2 1/2" Steel 3-Steel 1500 480V/3PH 16 13 7/8" No MS2HSB-A13PP-1500ZF $1264.84
2 1/2" Steel 3-Steel 2000 480V/3PH 16 17 1/2" No MS2HSB-A17HP-2000ZF $1312.22
2 1/2" Steel 3-Steel 2500 480V/3PH 16 21 1/8" No MS2HSB-A21BP-2500ZF $1372.99
2 1/2" Steel 3-Steel 3000 480V/3PH 16 24 7/8" No MS2HSB-A24PP-3000ZF $1435.82
2 1/2" Steel 3-Steel 4000 480V/3PH 16 32 1/8" No MS2HSB-A32DP-4000ZF $1561.48
2 1/2" Steel 3-Steel 5000 480V/3PH 16 39 1/2" No MS2HSB-A39HP-5000ZF $1688.17
2 1/2" Steel 3-Steel 6000 480V/3PH 16 46 7/8" No MS2HSB-A46PP-6000ZF $1789.11

APPLICATION: BUNKER C AND #6 FUEL OILS

NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" Steel 3-Steel 1000 240V/3PH 8 17 1/2" No MS2HSB-A17HL-1000ZF $1312.22
2 1/2" Steel 3-Steel 1500 240V/3PH 8 24 7/8" No MS2HSB-A24PL-1500ZF $1435.82
2 1/2" Steel 3-Steel 2000 240V/3PH 8 32 1/4" No MS2HSB-A32DL-2000ZF $1561.48
2 1/2" Steel 3-Steel 2500 240V/3PH 8 39 1/2" No MS2HSB-A39HL-2500ZF $1688.17
2 1/2" Steel 3-Steel 3000 240V/3PH 8 47" No MS2HSB-A470L-3000ZF $1789.11
2 1/2" Steel 3-Steel 4000 240V/3PH 8 61 5/8" No MS2HSB-A61KL-4000ZF $1960.09
2 1/2" Steel 3-Steel 5000 240V/3PH 8 76 1/4" No MS2HSB-A76DL-5000ZF $2177.42
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" Steel 3-Steel 1000 480V/3PH 8 17 1/2" No MS2HSB-A17HP-1000ZF $1312.22
2 1/2" Steel 3-Steel 1500 480V/3PH 8 24 7/8" No MS2HSB-A24PP-1500ZF $1435.82
2 1/2" Steel 3-Steel 2000 480V/3PH 8 32 1/4" No MS2HSB-A32DP-2000ZF $1561.48
2 1/2" Steel 3-Steel 2500 480V/3PH 8 39 1/2" No MS2HSB-A39HP-2500ZF $1688.17
2 1/2" Steel 3-Steel 3000 480V/3PH 8 47" No MS2HSB-A470P-3000ZF $1789.11
2 1/2" Steel 3-Steel 4000 480V/3PH 8 61 5/8" No MS2HSB-A61KP-4000ZF $1960.09
2 1/2" Steel 3-Steel 5000 480V/3PH 8 76 1/4" No MS2HSB-A76DP-5000ZF $2177.42

Screw Plug Immersion Heaters–NEMA 4 Enclosures 60-250°F Thermostat

Back to Top

APPLICATION: PROCESS WATER

NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" 304 Stainless Steel 3-840 Incoloy 3000 240V/3PH 48 10 1/4" No MS2044-A10DL-3000Z6 $1393.59
2" 304 Stainless Steel 3-840 Incoloy 4500 240V/3PH 48 14" No MS2044-A140L-4500Z6 $1467.75
2" 304 Stainless Steel 3-840 Incoloy 6000 240V/3PH 48 17 5/8" No MS2044-A17KL-6000Z6 $1545.00
2" 304 Stainless Steel 3-840 Incoloy 7500 240V/3PH 48 21 1/4" No MS2044-A21DL-7500Z6 $1643.88
2" 304 Stainless Steel 3-840 Incoloy 9000 240V/3PH 48 25" No MS2044-A250L-9000Z6 $1733.49
2" 304 Stainless Steel 3-840 Incoloy 12000 240V/3PH 48 32 3/8" No MS2044-A32FL-120CZ6 $1920.95
2" 304 Stainless Steel 3-840 Incoloy 15000 240V/3PH 48 39 5/8" No MS2044-A39KL-150CZ6 $2125.92
2" 304 Stainless Steel 3-840 Incoloy 18000 240V/3PH 48 47" No MS2044-A470L-180CZ6 $2284.54
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" 304 Stainless Steel 3-840 Incoloy 3000 480V/3PH 48 10 1/4" No MS2044-A10DP-3000Z6 $1393.59
2" 304 Stainless Steel 3-840 Incoloy 4500 480V/3PH 48 14" No MS2044-A140P-4500Z6 $1467.75
2" 304 Stainless Steel 3-840 Incoloy 6000 480V/3PH 48 17 5/8" No MS2044-A17KP-6000Z6 $1545.00
2" 304 Stainless Steel 3-840 Incoloy 7500 480V/3PH 48 21 1/4" No MS2044-A21DP-7500Z6 $1643.88
2" 304 Stainless Steel 3-840 Incoloy 9000 480V/3PH 48 25" No MS2044-A250P-9000Z6 $1733.49
2" 304 Stainless Steel 3-840 Incoloy 12000 480V/3PH 48 32 3/8" No MS2044-A32FP-120CZ6 $1920.95
2" 304 Stainless Steel 3-840 Incoloy 15000 480V/3PH 48 39 5/8" No MS2044-A39KP-150CZ6 $2125.92
2" 304 Stainless Steel 3-840 Incoloy 18000 480V/3PH 48 47" No MS2044-A470P-180CZ6 $2284.54
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" 304 Stainless Steel 3-840 Incoloy 3000 240V/3PH 48 10 1/8" No MS2H44-A10BL-3000Z6 $1416.25
2 1/2" 304 Stainless Steel 3-840 Incoloy 4500 240V/3PH 48 13 7/8" No MS2H44-A13PL-4500Z6 $1500.71
2 1/2" 304 Stainless Steel 3-840 Incoloy 6000 240V/3PH 48 17 1/2" No MS2H44-A17HL-6000Z6 $1572.81
2 1/2" 304 Stainless Steel 3-840 Incoloy 7500 240V/3PH 48 21 1/8" No MS2H44-A21BL-7500Z6 $1674.78
2 1/2" 304 Stainless Steel 3-840 Incoloy 9000 240V/3PH 48 24 7/8" No MS2H44-A24PL-9000Z6 $1780.87
2 1/2" 304 Stainless Steel 3-840 Incoloy 12000 240V/3PH 48 32 1/4" No MS2H44-A32DL-120CZ6 $1975.54
2 1/2" 304 Stainless Steel 3-840 Incoloy 15000 240V/3PH 48 39 1/2" No MS2H44-A39HL-150CZ6 $2178.45
2 1/2" 304 Stainless Steel 3-840 Incoloy 18000 240V/3PH 48 46 7/8" No MS2H44-A46PL-180CZ6 $2359.73
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" 304 Stainless Steel 3-840 Incoloy 3000 480V/3PH 48 10 1/8" No MS2H44-A10BP-3000Z6 $1416.25
2 1/2" 304 Stainless Steel 3-840 Incoloy 4500 480V/3PH 48 13 7/8" No MS2H44-A13PP-4500Z6 $1500.71
2 1/2" 304 Stainless Steel 3-840 Incoloy 6000 480V/3PH 48 17 1/2" No MS2H44-A17HP-6000Z6 $1572.81
2 1/2" 304 Stainless Steel 3-840 Incoloy 7500 480V/3PH 48 21 1/8" No MS2H44-A21BP-7500Z6 $1674.78
2 1/2" 304 Stainless Steel 3-840 Incoloy 9000 480V/3PH 48 24 7/8" No MS2H44-A24PP-9000Z6 $1780.87
2 1/2" 304 Stainless Steel 3-840 Incoloy 12000 480V/3PH 48 32 1/4" No MS2H44-A32DP-120CZ6 $1975.54
2 1/2" 304 Stainless Steel 3-840 Incoloy 15000 480V/3PH 48 39 1/2" No MS2H44-A39HP-150CZ6 $2178.45
2 1/2" 304 Stainless Steel 3-840 Incoloy 18000 480V/3PH 48 46 7/8" No MS2H44-A46PP-180CZ6 $2359.73

APPLICATION: FORCED AIR AND GASES, CAUSTIC SOLUTIONS, DEGREASING SOLUTIONS

NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" 304 Stainless Steel 3-840 Incoloy 1500 240V/3PH 23 10 1/4" No MS2044-A10DL-1500Z6 $1393.59
2" 304 Stainless Steel 3-840 Incoloy 3000 240V/3PH 23 17 5/8" No MS2044-A17KL-3000Z6 $1545.00
2" 304 Stainless Steel 3-840 Incoloy 4500 240V/3PH 23 25" No MS2044-A250L-4500Z6 $1733.49
2" 304 Stainless Steel 3-840 Incoloy 6000 240V/3PH 23 32 3/8" No MS2044-A32FL-6000Z6 $1920.95
2" 304 Stainless Steel 3-840 Incoloy 7500 240V/3PH 23 39 5/8" No MS2044-A39KL-7500Z6 $2113.56
2" 304 Stainless Steel 3-840 Incoloy 9000 240V/3PH 23 47" No MS2044-A470L-9000Z6 $2284.54
2" 304 Stainless Steel 3-840 Incoloy 12000 240V/3PH 23 61 3/4" No MS2044-A61ML-120CZ6 $2495.69
2" 304 Stainless Steel 3-840 Incoloy 15000 240V/3PH 23 76 3/8" No MS2044-A76FL-150CZ6 $2664.61
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" 304 Stainless Steel 3-840 Incoloy 1500 480V/3PH 23 10 1/4" No MS2044-A10DP-1500Z6 $1393.59
2" 304 Stainless Steel 3-840 Incoloy 3000 480V/3PH 23 17 5/8" No MS2044-A17KP-3000Z6 $1545.00
2" 304 Stainless Steel 3-840 Incoloy 4500 480V/3PH 23 25" No MS2044-A250P-4500Z6 $1733.49
2" 304 Stainless Steel 3-840 Incoloy 6000 480V/3PH 23 32 3/8" No MS2044-A32FP-6000Z6 $1920.95
2" 304 Stainless Steel 3-840 Incoloy 7500 480V/3PH 23 39 5/8" No MS2044-A39KP-7500Z6 $2113.56
2" 304 Stainless Steel 3-840 Incoloy 9000 480V/3PH 23 47" No MS2044-A470P-9000Z6 $2284.54
2" 304 Stainless Steel 3-840 Incoloy 12000 480V/3PH 23 61 3/4" No MS2044-A61MP-120CZ6 $2495.69
2" 304 Stainless Steel 3-840 Incoloy 15000 480V/3PH 23 76 3/8" No MS2044-A76FP-150CZ6 $2664.61
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" 304 Stainless Steel 3-840 Incoloy 3000 240V/3PH 23 17 1/2" No MS2H44-A17HL-3000Z6 $1572.81
2 1/2" 304 Stainless Steel 3-840 Incoloy 4500 240V/3PH 23 24 7/8" No MS2H44-A24PL-4500Z6 $1780.87
2 1/2" 304 Stainless Steel 3-840 Incoloy 6000 240V/3PH 23 32 1/4" No MS2H44-A32DL-6000Z6 $1975.54
2 1/2" 304 Stainless Steel 3-840 Incoloy 7500 240V/3PH 23 39 1/2" No MS2H44-A39HL-7500Z6 $2178.45
2 1/2" 304 Stainless Steel 3-840 Incoloy 9000 240V/3PH 23 46 7/8" No MS2H44-A46PL-9000Z6 $2359.73
2 1/2" 304 Stainless Steel 3-840 Incoloy 12000 240V/3PH 23 61 5/8" No MS2H44-A61KL-120CZ6 $2539.98
2 1/2" 304 Stainless Steel 3-840 Incoloy 15000 240V/3PH 23 76 1/4" No MS2H44-A76DL-150CZ6 $2715.08
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" 304 Stainless Steel 3-840 Incoloy 3000 480V/3PH 23 17 1/2" No MS2H44-A17HP-3000Z6 $1572.81
2 1/2" 304 Stainless Steel 3-840 Incoloy 4500 480V/3PH 23 24 7/8" No MS2H44-A24PP-4500Z6 $1780.87
2 1/2" 304 Stainless Steel 3-840 Incoloy 6000 480V/3PH 23 32 1/4" No MS2H44-A32DP-6000Z6 $1975.54
2 1/2" 304 Stainless Steel 3-840 Incoloy 7500 480V/3PH 23 39 1/2" No MS2H44-A39HP-7500Z6 $2178.45
2 1/2" 304 Stainless Steel 3-840 Incoloy 9000 480V/3PH 23 46 7/8" No MS2H44-A46PP-9000Z6 $2359.73
2 1/2" 304 Stainless Steel 3-840 Incoloy 12000 480V/3PH 23 61 5/8" No MS2H44-A61KP-120CZ6 $2539.98
2 1/2" 304 Stainless Steel 3-840 Incoloy 15000 480V/3PH 23 76 1/4" No MS2H44-A76DP-150CZ6 $2715.08

APPLICATION: LIGHTWEIGHT OILS, DEGREASING SOLUTIONS, HEAT TRANSFER OILS

NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" Steel 3-Steel 1500 240V/3PH 23 10 1/4" No MS20SB-A10DL-1500Z6 $1191.71
2" Steel 3-Steel 3000 240V/3PH 23 17 5/8" No MS20SB-A17KL-3000Z6 $1245.27
2" Steel 3-Steel 4500 240V/3PH 23 25" No MS20SB-A250L-4500Z6 $1346.21
2" Steel 3-Steel 6000 240V/3PH 23 32 3/8" No MS20SB-A32FL-6000Z6 $1445.09
2" Steel 3-Steel 7500 240V/3PH 23 39 5/8" No MS20SB-A39KL-7500Z6 $1545.00
2" Steel 3-Steel 9000 240V/3PH 23 47" No MS20SB-A470L-9000Z6 $1648.00
2" Steel 3-Steel 12000 240V/3PH 23 61 3/4" No MS20SB-A61ML-120CZ6 $1753.06
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" Steel 3-Steel 1500 480V/3PH 23 10 1/4" No MS20SB-A10DP-1500Z6 $1191.71
2" Steel 3-Steel 3000 480V/3PH 23 17 5/8" No MS20SB-A17KP-3000Z6 $1245.27
2" Steel 3-Steel 4500 480V/3PH 23 25" No MS20SB-A250P-4500Z6 $1346.21
2" Steel 3-Steel 6000 480V/3PH 23 32 3/8" No MS20SB-A32FP-6000Z6 $1445.09
2" Steel 3-Steel 7500 480V/3PH 23 39 5/8" No MS20SB-A39KP-7500Z6 $1545.00
2" Steel 3-Steel 9000 480V/3PH 23 47" No MS20SB-A470P-9000Z6 $1648.00
2" Steel 3-Steel 12000 480V/3PH 23 61 3/4" No MS20SB-A61MP-120CZ6 $1753.06
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" Steel 3-Steel 3000 240V/3PH 23 17 1/2" No MS2HSB-A17HL-3000Z6 $1292.65
2 1/2" Steel 3-Steel 4500 240V/3PH 23 24 7/8" No MS2HSB-A24PL-4500Z6 $1416.25
2 1/2" Steel 3-Steel 6000 240V/3PH 23 32 1/4" No MS2HSB-A32DL-6000Z6 $1541.91
2 1/2" Steel 3-Steel 7500 240V/3PH 23 39 1/2" No MS2HSB-A39HL-7500Z6 $1668.60
2 1/2" Steel 3-Steel 9000 240V/3PH 23 46 7/8" No MS2HSB-A46PL-9000Z6 $1769.54
2 1/2" Steel 3-Steel 12000 240V/3PH 23 61 5/8" No MS2HSB-A61KL-120CZ6 $1940.52
2 1/2" Steel 3-Steel 15000 240V/3PH 23 76 1/4" No MS2HSB-A76DL-150CZ6 $2157.85
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" Steel 3-Steel 3000 480V/3PH 23 17 1/2" No MS2HSB-A17HP-3000Z6 $1292.65
2 1/2" Steel 3-Steel 4500 480V/3PH 23 24 7/8" No MS2HSB-A24PP-4500Z6 $1416.25
2 1/2" Steel 3-Steel 6000 480V/3PH 23 32 1/4" No MS2HSB-A32DP-6000Z6 $1541.91
2 1/2" Steel 3-Steel 7500 480V/3PH 23 39 1/2" No MS2HSB-A39HP-7500Z6 $1668.60
2 1/2" Steel 3-Steel 9000 480V/3PH 23 46 7/8" No MS2HSB-A46PP-9000Z6 $1769.54
2 1/2" Steel 3-Steel 12000 480V/3PH 23 61 5/8" No MS2HSB-A61KP-120CZ6 $1940.52
2 1/2" Steel 3-Steel 15000 480V/3PH 23 76 1/4" No MS2HSB-A76DP-150CZ6 $2157.85

APPLICATION: MILDLY CORROSIVE SOLUTIONS, MEDIUM WEIGHT OILS, HEAT TRANSFER OILS

NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" 304 Stainless Steel 3-840 Incoloy 1000 240V/3PH 16 10 1/4" No MS2044-A10DL-1000Z6 $1393.59
2" 304 Stainless Steel 3-840 Incoloy 1500 240V/3PH 16 14" No MS2044-A140L-1500Z6 $1467.75
2" 304 Stainless Steel 3-840 Incoloy 2000 240V/3PH 16 17 5/8" No MS2044-A17KL-2000Z6 $1545.00
2" 304 Stainless Steel 3-840 Incoloy 2500 240V/3PH 16 21 1/4" No MS2044-A21DL-2500Z6 $1643.88
2" 304 Stainless Steel 3-840 Incoloy 3000 240V/3PH 16 25" No MS2044-A250L-3000Z6 $1733.49
2" 304 Stainless Steel 3-840 Incoloy 4000 240V/3PH 16 32 3/8" No MS2044-A32FL-4000Z6 $1920.95
2" 304 Stainless Steel 3-840 Incoloy 5000 240V/3PH 16 39 5/8" No MS2044-A39KL-5000Z6 $2113.56
2" 304 Stainless Steel 3-840 Incoloy 6000 240V/3PH 16 47" No MS2044-A470L-6000Z6 $2284.54
2" 304 Stainless Steel 3-840 Incoloy 8000 240V/3PH 16 61 3/4" No MS2044-A61ML-8000Z6 $2495.69
2" 304 Stainless Steel 3-840 Incoloy 10000 240V/3PH 16 76 3/8" No MS2044-A76FL-100CZ6 $2664.61
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" 304 Stainless Steel 3-840 Incoloy 1000 480V/3PH 16 10 1/4" No MS2044-A10DP-1000Z6 $1393.59
2" 304 Stainless Steel 3-840 Incoloy 1500 480V/3PH 16 14" No MS2044-A140P-1500Z6 $1467.75
2" 304 Stainless Steel 3-840 Incoloy 2000 480V/3PH 16 17 5/8" No MS2044-A17KP-2000Z6 $1545.00
2" 304 Stainless Steel 3-840 Incoloy 2500 480V/3PH 16 21 1/4" No MS2044-A21DP-2500Z6 $1643.88
2" 304 Stainless Steel 3-840 Incoloy 3000 480V/3PH 16 25" No MS2044-A250P-3000Z6 $1733.49
2" 304 Stainless Steel 3-840 Incoloy 4000 480V/3PH 16 32 3/8" No MS2044-A32FP-4000Z6 $1920.95
2" 304 Stainless Steel 3-840 Incoloy 5000 480V/3PH 16 39 5/8" No MS2044-A39KP-5000Z6 $2113.56
2" 304 Stainless Steel 3-840 Incoloy 6000 480V/3PH 16 47" No MS2044-A470P-6000Z6 $2284.54
2" 304 Stainless Steel 3-840 Incoloy 8000 480V/3PH 16 61 3/4" No MS2044-A61MP-8000Z6 $2495.69
2" 304 Stainless Steel 3-840 Incoloy 10000 480V/3PH 16 76 3/8" No MS2044-A76FP-100CZ6 $2664.61
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" 304 Stainless Steel 3-840 Incoloy 1000 240V/3PH 16 10 1/8" No MS2H44-A10BL-1000Z6 $1416.25
2 1/2" 304 Stainless Steel 3-840 Incoloy 1500 240V/3PH 16 13 7/8" No MS2H44-A13PL-1500Z6 $1500.71
2 1/2" 304 Stainless Steel 3-840 Incoloy 2000 240V/3PH 16 17 1/2" No MS2H44-A17HL-2000Z6 $1572.81
2 1/2" 304 Stainless Steel 3-840 Incoloy 2500 240V/3PH 16 21 1/8" No MS2H44-A21BL-2500Z6 $1674.78
2 1/2" 304 Stainless Steel 3-840 Incoloy 3000 240V/3PH 16 24 7/8" No MS2H44-A24PL-3000Z6 $1780.87
2 1/2" 304 Stainless Steel 3-840 Incoloy 4000 240V/3PH 16 32 1/4" No MS2H44-A32DL-4000Z6 $1975.54
2 1/2" 304 Stainless Steel 3-840 Incoloy 5000 240V/3PH 16 39 1/2" No MS2H44-A39HL-5000Z6 $2178.45
2 1/2" 304 Stainless Steel 3-840 Incoloy 6000 240V/3PH 16 46 7/8" No MS2H44-A46PL-6000Z6 $2359.73
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" 304 Stainless Steel 3-840 Incoloy 1000 480V/3PH 16 10 1/8" No MS2H44-A10BP-1000Z6 $1416.25
2 1/2" 304 Stainless Steel 3-840 Incoloy 1500 480V/3PH 16 13 7/8" No MS2H44-A13PP-1500Z6 $1500.71
2 1/2" 304 Stainless Steel 3-840 Incoloy 2000 480V/3PH 16 17 1/2" No MS2H44-A17HP-2000Z6 $1572.81
2 1/2" 304 Stainless Steel 3-840 Incoloy 2500 480V/3PH 16 21 1/8" No MS2H44-A21BP-2500Z6 $1674.78
2 1/2" 304 Stainless Steel 3-840 Incoloy 3000 480V/3PH 16 24 7/8" No MS2H44-A24PP-3000Z6 $1780.87
2 1/2" 304 Stainless Steel 3-840 Incoloy 4000 480V/3PH 16 32 1/4" No MS2H44-A32DP-4000Z6 $1975.54
2 1/2" 304 Stainless Steel 3-840 Incoloy 5000 480V/3PH 16 39 1/2" No MS2H44-A39HP-5000Z6 $2178.45
2 1/2" 304 Stainless Steel 3-840 Incoloy 6000 480V/3PH 16 46 7/8" No MS2H44-A46PP-6000Z6 $2359.73

APPLICATION: MEDIUM WEIGHT OILS, HEAT TRANSFER OILS, PARAFFIN

NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" Steel 3-Steel 1000 240V/3PH 16 10 1/4" No MS20SB-A10DL-1000Z6 $1191.71
2" Steel 3-Steel 1500 240V/3PH 16 14" No MS20SB-A140L-1500Z6 $1217.46
2" Steel 3-Steel 2000 240V/3PH 16 17 5/8" No MS20SB-A17KL-2000Z6 $1245.27
2" Steel 3-Steel 2500 240V/3PH 16 21 1/4" No MS20SB-A21DL-2500Z6 $1257.63
2" Steel 3-Steel 3000 240V/3PH 16 25" No MS20SB-A250L-3000Z6 $1346.21
2" Steel 3-Steel 4000 240V/3PH 16 32 3/8" No MS20SB-A32FL-4000Z6 $1445.09
2" Steel 3-Steel 5000 240V/3PH 16 39 5/8" No MS20SB-A39KL-5000Z6 $1545.00
2" Steel 3-Steel 6000 240V/3PH 16 47" No MS20SB-A470L-6000Z6 $1648.00
2" Steel 3-Steel 8000 240V/3PH 16 61 3/4" No MS20SB-A61ML-8000Z6 $1675.81
2" Steel 3-Steel 10000 240V/3PH 16 76 3/8" No MS20SB-A76FL-100CZ6 $1850.91
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" Steel 3-Steel 1000 480V/3PH 16 10 1/4" No MS20SB-A10DP-1000Z6 $1191.71
2" Steel 3-Steel 1500 480V/3PH 16 14" No MS20SB-A140P-1500Z6 $1217.46
2" Steel 3-Steel 2000 480V/3PH 16 17 5/8" No MS20SB-A17KP-2000Z6 $1245.27
2" Steel 3-Steel 2500 480V/3PH 16 21 1/4" No MS20SB-A21DP-2500Z6 $1257.63
2" Steel 3-Steel 3000 480V/3PH 16 25" No MS20SB-A250P-3000Z6 $1346.21
2" Steel 3-Steel 4000 480V/3PH 16 32 3/8" No MS20SB-A32FP-4000Z6 $1445.09
2" Steel 3-Steel 5000 480V/3PH 16 39 5/8" No MS20SB-A39KP-5000Z6 $1545.00
2" Steel 3-Steel 6000 480V/3PH 16 47" No MS20SB-A470P-6000Z6 $1648.00
2" Steel 3-Steel 8000 480V/3PH 16 61 3/4" No MS20SB-A61MP-8000Z6 $1675.81
2" Steel 3-Steel 10000 480V/3PH 16 76 3/8" No MS20SB-A76FP-100CZ6 $1850.91
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" Steel 3-Steel 1000 240V/3PH 16 10 1/8" No MS2HSB-A10BL-1000Z6 $1205.10
2 1/2" Steel 3-Steel 1500 240V/3PH 16 13 7/8" No MS2HSB-A13PL-1500Z6 $1245.27
2 1/2" Steel 3-Steel 2000 240V/3PH 16 17 1/2" No MS2HSB-A17HL-2000Z6 $1292.65
2 1/2" Steel 3-Steel 2500 240V/3PH 16 21 1/8" No MS2HSB-A21BL-2500Z6 $1353.42
2 1/2" Steel 3-Steel 3000 240V/3PH 16 24 7/8" No MS2HSB-A24PL-3000Z6 $1416.25
2 1/2" Steel 3-Steel 4000 240V/3PH 16 32 1/4" No MS2HSB-A32DL-4000Z6 $1541.91
2 1/2" Steel 3-Steel 5000 240V/3PH 16 39 1/2" No MS2HSB-A39HL-5000Z6 $1668.60
2 1/2" Steel 3-Steel 6000 240V/3PH 16 46 7/8" No MS2HSB-A46PL-6000Z6 $1769.54
Steel Plug, 3-Steel Elements, No Sensor
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" Steel 3-Steel 1000 480V/3PH 16 10 1/8" No MS2HSB-A10BP-1000Z6 $1205.10
2 1/2" Steel 3-Steel 1500 480V/3PH 16 13 7/8" No MS2HSB-A13PP-1500Z6 $1245.27
2 1/2" Steel 3-Steel 2000 480V/3PH 16 17 1/2" No MS2HSB-A17HP-2000Z6 $1292.65
2 1/2" Steel 3-Steel 2500 480V/3PH 16 21 1/8" No MS2HSB-A21BP-2500Z6 $1353.42
2 1/2" Steel 3-Steel 3000 480V/3PH 16 24 7/8" No MS2HSB-A24PP-3000Z6 $1416.25
2 1/2" Steel 3-Steel 4000 480V/3PH 16 32 1/4" No MS2HSB-A32DP-4000Z6 $1541.91
2 1/2" Steel 3-Steel 5000 480V/3PH 16 39 1/2" No MS2HSB-A39HP-5000Z6 $1668.60
2 1/2" Steel 3-Steel 6000 480V/3PH 16 46 7/8" No MS2HSB-A46PP-6000Z6 $1769.54

APPLICATION: BUNKER C AND #6 FUEL OILS

NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" Steel 3-Steel 1000 240V/3PH 8 17 1/2" No MS2HSB-A17HL-1000Z6 $1292.65
2 1/2" Steel 3-Steel 1500 240V/3PH 8 24 7/8" No MS2HSB-A24PL-1500Z6 $1416.25
2 1/2" Steel 3-Steel 2000 240V/3PH 8 32 1/4" No MS2HSB-A32DL-2000Z6 $1541.91
2 1/2" Steel 3-Steel 2500 240V/3PH 8 39 1/2" No MS2HSB-A39HL-2500Z6 $1668.60
2 1/2" Steel 3-Steel 3000 240V/3PH 8 47" No MS2HSB-A470L-3000Z6 $1769.54
2 1/2" Steel 3-Steel 4000 240V/3PH 8 61 5/8" No MS2HSB-A61KL-4000Z6 $1940.52
2 1/2" Steel 3-Steel 5000 240V/3PH 8 76 1/4" No MS2HSB-A76DL-5000Z6 $2157.85
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" Steel 3-Steel 1000 480V/3PH 8 17 1/2" No MS2HSB-A17HP-1000Z6 $1292.65
2 1/2" Steel 3-Steel 1500 480V/3PH 8 24 7/8" No MS2HSB-A24PP-1500Z6 $1416.25
2 1/2" Steel 3-Steel 2000 480V/3PH 8 32 1/4" No MS2HSB-A32DP-2000Z6 $1541.91
2 1/2" Steel 3-Steel 2500 480V/3PH 8 39 1/2" No MS2HSB-A39HP-2500Z6 $1668.60
2 1/2" Steel 3-Steel 3000 480V/3PH 8 47" No MS2HSB-A470P-3000Z6 $1769.54
2 1/2" Steel 3-Steel 4000 480V/3PH 8 61 5/8" No MS2HSB-A61KP-4000Z6 $1940.52
2 1/2" Steel 3-Steel 5000 480V/3PH 8 76 1/4" No MS2HSB-A76DP-5000Z6 $2157.85

Screw Plug Immersion Heaters–NEMA 4 Enclosures 100-550°F Thermostat

Back to Top

APPLICATION: PROCESS WATER

NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" 304 Stainless Steel 3-840 Incoloy 3000 240V/3PH 48 10 1/4" No MS2044-A10DL-3000Z0 $1393.59
2" 304 Stainless Steel 3-840 Incoloy 4500 240V/3PH 48 14" No MS2044-A140L-4500Z0 $1467.75
2" 304 Stainless Steel 3-840 Incoloy 6000 240V/3PH 48 17 5/8" No MS2044-A17KL-6000Z0 $1545.00
2" 304 Stainless Steel 3-840 Incoloy 7500 240V/3PH 48 21 1/4" No MS2044-A21DL-7500Z0 $1643.88
2" 304 Stainless Steel 3-840 Incoloy 9000 240V/3PH 48 25" No MS2044-A250L-9000Z0 $1733.49
2" 304 Stainless Steel 3-840 Incoloy 12000 240V/3PH 48 32 3/8" No MS2044-A32FL-120CZ0 $1920.95
2" 304 Stainless Steel 3-840 Incoloy 15000 240V/3PH 48 39 5/8" No MS2044-A39KL-150CZ0 $2125.92
2" 304 Stainless Steel 3-840 Incoloy 18000 240V/3PH 48 47" No MS2044-A470L-180CZ0 $2284.54
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" 304 Stainless Steel 3-840 Incoloy 3000 480V/3PH 48 10 1/4" No MS2044-A10DP-3000Z0 $1393.59
2" 304 Stainless Steel 3-840 Incoloy 4500 480V/3PH 48 14" No MS2044-A140P-4500Z0 $1467.75
2" 304 Stainless Steel 3-840 Incoloy 6000 480V/3PH 48 17 5/8" No MS2044-A17KP-6000Z0 $1545.00
2" 304 Stainless Steel 3-840 Incoloy 7500 480V/3PH 48 21 1/4" No MS2044-A21DP-7500Z0 $1643.88
2" 304 Stainless Steel 3-840 Incoloy 9000 480V/3PH 48 25" No MS2044-A250P-9000Z0 $1733.49
2" 304 Stainless Steel 3-840 Incoloy 12000 480V/3PH 48 32 3/8" No MS2044-A32FP-120CZ0 $1920.95
2" 304 Stainless Steel 3-840 Incoloy 15000 480V/3PH 48 39 5/8" No MS2044-A39KP-150CZ0 $2125.92
2" 304 Stainless Steel 3-840 Incoloy 18000 480V/3PH 48 47" No MS2044-A470P-180CZ0 $2284.54
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" 304 Stainless Steel 3-840 Incoloy 3000 240V/3PH 48 10 1/8" No MS2H44-A10BL-3000Z0 $1416.25
2 1/2" 304 Stainless Steel 3-840 Incoloy 4500 240V/3PH 48 13 7/8" No MS2H44-A13PL-4500Z0 $1500.71
2 1/2" 304 Stainless Steel 3-840 Incoloy 6000 240V/3PH 48 17 1/2" No MS2H44-A17HL-6000Z0 $1572.81
2 1/2" 304 Stainless Steel 3-840 Incoloy 7500 240V/3PH 48 21 1/8" No MS2H44-A21BL-7500Z0 $1674.78
2 1/2" 304 Stainless Steel 3-840 Incoloy 9000 240V/3PH 48 24 7/8" No MS2H44-A24PL-9000Z0 $1780.87
2 1/2" 304 Stainless Steel 3-840 Incoloy 12000 240V/3PH 48 32 1/4" No MS2H44-A32DL-120CZ0 $1975.54
2 1/2" 304 Stainless Steel 3-840 Incoloy 15000 240V/3PH 48 39 1/2" No MS2H44-A39HL-150CZ0 $2178.45
2 1/2" 304 Stainless Steel 3-840 Incoloy 18000 240V/3PH 48 46 7/8" No MS2H44-A46PL-180CZ0 $2359.73
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" 304 Stainless Steel 3-840 Incoloy 3000 480V/3PH 48 10 1/8" No MS2H44-A10BP-3000Z0 $1416.25
2 1/2" 304 Stainless Steel 3-840 Incoloy 4500 480V/3PH 48 13 7/8" No MS2H44-A13PP-4500Z0 $1500.71
2 1/2" 304 Stainless Steel 3-840 Incoloy 6000 480V/3PH 48 17 1/2" No MS2H44-A17HP-6000Z0 $1572.81
2 1/2" 304 Stainless Steel 3-840 Incoloy 7500 480V/3PH 48 21 1/8" No MS2H44-A21BP-7500Z0 $1674.78
2 1/2" 304 Stainless Steel 3-840 Incoloy 9000 480V/3PH 48 24 7/8" No MS2H44-A24PP-9000Z0 $1780.87
2 1/2" 304 Stainless Steel 3-840 Incoloy 12000 480V/3PH 48 32 1/4" No MS2H44-A32DP-120CZ0 $1975.54
2 1/2" 304 Stainless Steel 3-840 Incoloy 15000 480V/3PH 48 39 1/2" No MS2H44-A39HP-150CZ0 $2178.45
2 1/2" 304 Stainless Steel 3-840 Incoloy 18000 480V/3PH 48 46 7/8" No MS2H44-A46PP-180CZ0 $2359.73

APPLICATION: FORCED AIR AND GASES, CAUSTIC SOLUTIONS, DEGREASING SOLUTIONS

NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" 304 Stainless Steel 3-840 Incoloy 1500 240V/3PH 23 10 1/4" No MS2044-A10DL-1500Z0 $1393.59
2" 304 Stainless Steel 3-840 Incoloy 3000 240V/3PH 23 17 5/8" No MS2044-A17KL-3000Z0 $1545.00
2" 304 Stainless Steel 3-840 Incoloy 4500 240V/3PH 23 25" No MS2044-A250L-4500Z0 $1733.49
2" 304 Stainless Steel 3-840 Incoloy 6000 240V/3PH 23 32 3/8" No MS2044-A32FL-6000Z0 $1920.95
2" 304 Stainless Steel 3-840 Incoloy 7500 240V/3PH 23 39 5/8" No MS2044-A39KL-7500Z0 $2113.56
2" 304 Stainless Steel 3-840 Incoloy 9000 240V/3PH 23 47" No MS2044-A470L-9000Z0 $2284.54
2" 304 Stainless Steel 3-840 Incoloy 12000 240V/3PH 23 61 3/4" No MS2044-A61ML-120CZ0 $2495.69
2" 304 Stainless Steel 3-840 Incoloy 15000 240V/3PH 23 76 3/8" No MS2044-A76FL-150CZ0 $2664.61
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" 304 Stainless Steel 3-840 Incoloy 1500 480V/3PH 23 10 1/4" No MS2044-A10DP-1500Z0 $1393.59
2" 304 Stainless Steel 3-840 Incoloy 3000 480V/3PH 23 17 5/8" No MS2044-A17KP-3000Z0 $1545.00
2" 304 Stainless Steel 3-840 Incoloy 4500 480V/3PH 23 25" No MS2044-A250P-4500Z0 $1733.49
2" 304 Stainless Steel 3-840 Incoloy 6000 480V/3PH 23 32 3/8" No MS2044-A32FP-6000Z0 $1920.95
2" 304 Stainless Steel 3-840 Incoloy 7500 480V/3PH 23 39 5/8" No MS2044-A39KP-7500Z0 $2113.56
2" 304 Stainless Steel 3-840 Incoloy 9000 480V/3PH 23 47" No MS2044-A470P-9000Z0 $2284.54
2" 304 Stainless Steel 3-840 Incoloy 12000 480V/3PH 23 61 3/4" No MS2044-A61MP-120CZ0 $2495.69
2" 304 Stainless Steel 3-840 Incoloy 15000 480V/3PH 23 76 3/8" No MS2044-A76FP-150CZ0 $2664.61
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" 304 Stainless Steel 3-840 Incoloy 3000 240V/3PH 23 17 1/2" No MS2H44-A17HL-3000Z0 $1572.81
2 1/2" 304 Stainless Steel 3-840 Incoloy 4500 240V/3PH 23 24 7/8" No MS2H44-A24PL-4500Z0 $1780.87
2 1/2" 304 Stainless Steel 3-840 Incoloy 6000 240V/3PH 23 32 1/4" No MS2H44-A32DL-6000Z0 $1975.54
2 1/2" 304 Stainless Steel 3-840 Incoloy 7500 240V/3PH 23 39 1/2" No MS2H44-A39HL-7500Z0 $2178.45
2 1/2" 304 Stainless Steel 3-840 Incoloy 9000 240V/3PH 23 46 7/8" No MS2H44-A46PL-9000Z0 $2359.73
2 1/2" 304 Stainless Steel 3-840 Incoloy 12000 240V/3PH 23 61 5/8" No MS2H44-A61KL-120CZ0 $2539.98
2 1/2" 304 Stainless Steel 3-840 Incoloy 15000 240V/3PH 23 76 1/4" No MS2H44-A76DL-150CZ0 $2715.08
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" 304 Stainless Steel 3-840 Incoloy 3000 480V/3PH 23 17 1/2" No MS2H44-A17HP-3000Z0 $1572.81
2 1/2" 304 Stainless Steel 3-840 Incoloy 4500 480V/3PH 23 24 7/8" No MS2H44-A24PP-4500Z0 $1780.87
2 1/2" 304 Stainless Steel 3-840 Incoloy 6000 480V/3PH 23 32 1/4" No MS2H44-A32DP-6000Z0 $1975.54
2 1/2" 304 Stainless Steel 3-840 Incoloy 7500 480V/3PH 23 39 1/2" No MS2H44-A39HP-7500Z0 $2178.45
2 1/2" 304 Stainless Steel 3-840 Incoloy 9000 480V/3PH 23 46 7/8" No MS2H44-A46PP-9000Z0 $2359.73
2 1/2" 304 Stainless Steel 3-840 Incoloy 12000 480V/3PH 23 61 5/8" No MS2H44-A61KP-120CZ0 $2539.98
2 1/2" 304 Stainless Steel 3-840 Incoloy 15000 480V/3PH 23 76 1/4" No MS2H44-A76DP-150CZ0 $2715.08

APPLICATION: LIGHTWEIGHT OILS, DEGREASING SOLUTIONS, HEAT TRANSFER OILS

NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" Steel 3-Steel 1500 240V/3PH 23 10 1/4" No MS20SB-A10DL-1500Z0 $1191.71
2" Steel 3-Steel 3000 240V/3PH 23 17 5/8" No MS20SB-A17KL-3000Z0 $1245.27
2" Steel 3-Steel 4500 240V/3PH 23 25" No MS20SB-A250L-4500Z0 $1346.21
2" Steel 3-Steel 6000 240V/3PH 23 32 3/8" No MS20SB-A32FL-6000Z0 $1445.09
2" Steel 3-Steel 7500 240V/3PH 23 39 5/8" No MS20SB-A39KL-7500Z0 $1545.00
2" Steel 3-Steel 9000 240V/3PH 23 47" No MS20SB-A470L-9000Z0 $1648.00
2" Steel 3-Steel 12000 240V/3PH 23 61 3/4" No MS20SB-A61ML-120CZ0 $1753.06
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" Steel 3-Steel 1500 480V/3PH 23 10 1/4" No MS20SB-A10DP-1500Z0 $1191.71
2" Steel 3-Steel 3000 480V/3PH 23 17 5/8" No MS20SB-A17KP-3000Z0 $1245.27
2" Steel 3-Steel 4500 480V/3PH 23 25" No MS20SB-A250P-4500Z0 $1346.21
2" Steel 3-Steel 6000 480V/3PH 23 32 3/8" No MS20SB-A32FP-6000Z0 $1445.09
2" Steel 3-Steel 7500 480V/3PH 23 39 5/8" No MS20SB-A39KP-7500Z0 $1545.00
2" Steel 3-Steel 9000 480V/3PH 23 47" No MS20SB-A470P-9000Z0 $1648.00
2" Steel 3-Steel 12000 480V/3PH 23 61 3/4" No MS20SB-A61MP-120CZ0 $1753.06
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" Steel 3-Steel 3000 240V/3PH 23 17 1/2" No MS2HSB-A17HL-3000Z0 $1292.65
2 1/2" Steel 3-Steel 4500 240V/3PH 23 24 7/8" No MS2HSB-A24PL-4500Z0 $1416.25
2 1/2" Steel 3-Steel 6000 240V/3PH 23 32 1/4" No MS2HSB-A32DL-6000Z0 $1541.91
2 1/2" Steel 3-Steel 7500 240V/3PH 23 39 1/2" No MS2HSB-A39HL-7500Z0 $1668.60
2 1/2" Steel 3-Steel 9000 240V/3PH 23 46 7/8" No MS2HSB-A46PL-9000Z0 $1769.54
2 1/2" Steel 3-Steel 12000 240V/3PH 23 61 5/8" No MS2HSB-A61KL-120CZ0 $1940.52
2 1/2" Steel 3-Steel 15000 240V/3PH 23 76 1/4" No MS2HSB-A76DL-150CZ0 $2157.85
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" Steel 3-Steel 3000 480V/3PH 23 17 1/2" No MS2HSB-A17HP-3000Z0 $1292.65
2 1/2" Steel 3-Steel 4500 480V/3PH 23 24 7/8" No MS2HSB-A24PP-4500Z0 $1416.25
2 1/2" Steel 3-Steel 6000 480V/3PH 23 32 1/4" No MS2HSB-A32DP-6000Z0 $1541.91
2 1/2" Steel 3-Steel 7500 480V/3PH 23 39 1/2" No MS2HSB-A39HP-7500Z0 $1668.60
2 1/2" Steel 3-Steel 9000 480V/3PH 23 46 7/8" No MS2HSB-A46PP-9000Z0 $1769.54
2 1/2" Steel 3-Steel 12000 480V/3PH 23 61 5/8" No MS2HSB-A61KP-120CZ0 $1940.52
2 1/2" Steel 3-Steel 15000 480V/3PH 23 76 1/4" No MS2HSB-A76DP-150CZ0 $2157.85

APPLICATION: MILDLY CORROSIVE SOLUTIONS, MEDIUM WEIGHT OILS, HEAT TRANSFER OILS

NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" 304 Stainless Steel 3-840 Incoloy 1000 240V/3PH 16 10 1/4" No MS2044-A10DL-1000Z0 $1393.59
2" 304 Stainless Steel 3-840 Incoloy 1500 240V/3PH 16 14" No MS2044-A140L-1500Z0 $1467.75
2" 304 Stainless Steel 3-840 Incoloy 2000 240V/3PH 16 17 5/8" No MS2044-A17KL-2000Z0 $1545.00
2" 304 Stainless Steel 3-840 Incoloy 2500 240V/3PH 16 21 1/4" No MS2044-A21DL-2500Z0 $1643.88
2" 304 Stainless Steel 3-840 Incoloy 3000 240V/3PH 16 25" No MS2044-A250L-3000Z0 $1733.49
2" 304 Stainless Steel 3-840 Incoloy 4000 240V/3PH 16 32 3/8" No MS2044-A32FL-4000Z0 $1920.95
2" 304 Stainless Steel 3-840 Incoloy 5000 240V/3PH 16 39 5/8" No MS2044-A39KL-5000Z0 $2113.56
2" 304 Stainless Steel 3-840 Incoloy 6000 240V/3PH 16 47" No MS2044-A470L-6000Z0 $2284.54
2" 304 Stainless Steel 3-840 Incoloy 8000 240V/3PH 16 61 3/4" No MS2044-A61ML-8000Z0 $2495.69
2" 304 Stainless Steel 3-840 Incoloy 10000 240V/3PH 16 76 3/8" No MS2044-A76FL-100CZ0 $2664.61
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" 304 Stainless Steel 3-840 Incoloy 1000 480V/3PH 16 10 1/4" No MS2044-A10DP-1000Z0 $1393.59
2" 304 Stainless Steel 3-840 Incoloy 1500 480V/3PH 16 14" No MS2044-A140P-1500Z0 $1467.75
2" 304 Stainless Steel 3-840 Incoloy 2000 480V/3PH 16 17 5/8" No MS2044-A17KP-2000Z0 $1545.00
2" 304 Stainless Steel 3-840 Incoloy 2500 480V/3PH 16 21 1/4" No MS2044-A21DP-2500Z0 $1643.88
2" 304 Stainless Steel 3-840 Incoloy 3000 480V/3PH 16 25" No MS2044-A250P-3000Z0 $1733.49
2" 304 Stainless Steel 3-840 Incoloy 4000 480V/3PH 16 32 3/8" No MS2044-A32FP-4000Z0 $1920.95
2" 304 Stainless Steel 3-840 Incoloy 5000 480V/3PH 16 39 5/8" No MS2044-A39KP-5000Z0 $2113.56
2" 304 Stainless Steel 3-840 Incoloy 6000 480V/3PH 16 47" No MS2044-A470P-6000Z0 $2284.54
2" 304 Stainless Steel 3-840 Incoloy 8000 480V/3PH 16 61 3/4" No MS2044-A61MP-8000Z0 $2495.69
2" 304 Stainless Steel 3-840 Incoloy 10000 480V/3PH 16 76 3/8" No MS2044-A76FP-100CZ0 $2664.61
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" 304 Stainless Steel 3-840 Incoloy 1000 240V/3PH 16 10 1/8" No MS2H44-A10BL-1000Z0 $1416.25
2 1/2" 304 Stainless Steel 3-840 Incoloy 1500 240V/3PH 16 13 7/8" No MS2H44-A13PL-1500Z0 $1500.71
2 1/2" 304 Stainless Steel 3-840 Incoloy 2000 240V/3PH 16 17 1/2" No MS2H44-A17HL-2000Z0 $1572.81
2 1/2" 304 Stainless Steel 3-840 Incoloy 2500 240V/3PH 16 21 1/8" No MS2H44-A21BL-2500Z0 $1674.78
2 1/2" 304 Stainless Steel 3-840 Incoloy 3000 240V/3PH 16 24 7/8" No MS2H44-A24PL-3000Z0 $1780.87
2 1/2" 304 Stainless Steel 3-840 Incoloy 4000 240V/3PH 16 32 1/4" No MS2H44-A32DL-4000Z0 $1975.54
2 1/2" 304 Stainless Steel 3-840 Incoloy 5000 240V/3PH 16 39 1/2" No MS2H44-A39HL-5000Z0 $2178.45
2 1/2" 304 Stainless Steel 3-840 Incoloy 6000 240V/3PH 16 46 7/8" No MS2H44-A46PL-6000Z0 $2359.73
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" 304 Stainless Steel 3-840 Incoloy 1000 480V/3PH 16 10 1/8" No MS2H44-A10BP-1000Z0 $1416.25
2 1/2" 304 Stainless Steel 3-840 Incoloy 1500 480V/3PH 16 13 7/8" No MS2H44-A13PP-1500Z0 $1500.71
2 1/2" 304 Stainless Steel 3-840 Incoloy 2000 480V/3PH 16 17 1/2" No MS2H44-A17HP-2000Z0 $1572.81
2 1/2" 304 Stainless Steel 3-840 Incoloy 2500 480V/3PH 16 21 1/8" No MS2H44-A21BP-2500Z0 $1674.78
2 1/2" 304 Stainless Steel 3-840 Incoloy 3000 480V/3PH 16 24 7/8" No MS2H44-A24PP-3000Z0 $1780.87
2 1/2" 304 Stainless Steel 3-840 Incoloy 4000 480V/3PH 16 32 1/4" No MS2H44-A32DP-4000Z0 $1975.54
2 1/2" 304 Stainless Steel 3-840 Incoloy 5000 480V/3PH 16 39 1/2" No MS2H44-A39HP-5000Z0 $2178.45
2 1/2" 304 Stainless Steel 3-840 Incoloy 6000 480V/3PH 16 46 7/8" No MS2H44-A46PP-6000Z0 $2359.73

APPLICATION: MEDIUM WEIGHT OILS, HEAT TRANSFER OILS, PARAFFIN

NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" Steel 3-Steel 1000 240V/3PH 16 10 1/4" No MS20SB-A10DL-1000Z0 $1191.71
2" Steel 3-Steel 1500 240V/3PH 16 14" No MS20SB-A140L-1500Z0 $1217.46
2" Steel 3-Steel 2000 240V/3PH 16 17 5/8" No MS20SB-A17KL-2000Z0 $1245.27
2" Steel 3-Steel 2500 240V/3PH 16 21 1/4" No MS20SB-A21DL-2500Z0 $1257.63
2" Steel 3-Steel 3000 240V/3PH 16 25" No MS20SB-A250L-3000Z0 $1346.21
2" Steel 3-Steel 4000 240V/3PH 16 32 3/8" No MS20SB-A32FL-4000Z0 $1445.09
2" Steel 3-Steel 5000 240V/3PH 16 39 5/8" No MS20SB-A39KL-5000Z0 $1545.00
2" Steel 3-Steel 6000 240V/3PH 16 47" No MS20SB-A470L-6000Z0 $1648.00
2" Steel 3-Steel 8000 240V/3PH 16 61 3/4" No MS20SB-A61ML-8000Z0 $1675.81
2" Steel 3-Steel 10000 240V/3PH 16 76 3/8" No MS20SB-A76FL-100CZ0 $1850.91
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2" Steel 3-Steel 1000 480V/3PH 16 10 1/4" No MS20SB-A10DP-1000Z0 $1191.71
2" Steel 3-Steel 1500 480V/3PH 16 14" No MS20SB-A140P-1500Z0 $1217.46
2" Steel 3-Steel 2000 480V/3PH 16 17 5/8" No MS20SB-A17KP-2000Z0 $1245.27
2" Steel 3-Steel 2500 480V/3PH 16 21 1/4" No MS20SB-A21DP-2500Z0 $1257.63
2" Steel 3-Steel 3000 480V/3PH 16 25" No MS20SB-A250P-3000Z0 $1346.21
2" Steel 3-Steel 4000 480V/3PH 16 32 3/8" No MS20SB-A32FP-4000Z0 $1445.09
2" Steel 3-Steel 5000 480V/3PH 16 39 5/8" No MS20SB-A39KP-5000Z0 $1545.00
2" Steel 3-Steel 6000 480V/3PH 16 47" No MS20SB-A470P-6000Z0 $1648.00
2" Steel 3-Steel 8000 480V/3PH 16 61 3/4" No MS20SB-A61MP-8000Z0 $1675.81
2" Steel 3-Steel 10000 480V/3PH 16 76 3/8" No MS20SB-A76FP-100CZ0 $1850.91
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" Steel 3-Steel 1000 240V/3PH 16 10 1/8" No MS2HSB-A10BL-1000Z0 $1205.10
2 1/2" Steel 3-Steel 1500 240V/3PH 16 13 7/8" No MS2HSB-A13PL-1500Z0 $1245.27
2 1/2" Steel 3-Steel 2000 240V/3PH 16 17 1/2" No MS2HSB-A17HL-2000Z0 $1292.65
2 1/2" Steel 3-Steel 2500 240V/3PH 16 21 1/8" No MS2HSB-A21BL-2500Z0 $1353.42
2 1/2" Steel 3-Steel 3000 240V/3PH 16 24 7/8" No MS2HSB-A24PL-3000Z0 $1416.25
2 1/2" Steel 3-Steel 4000 240V/3PH 16 32 1/4" No MS2HSB-A32DL-4000Z0 $1541.91
2 1/2" Steel 3-Steel 5000 240V/3PH 16 39 1/2" No MS2HSB-A39HL-5000Z0 $1668.60
2 1/2" Steel 3-Steel 6000 240V/3PH 16 46 7/8" No MS2HSB-A46PL-6000Z0 $1769.54
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" Steel 3-Steel 1000 480V/3PH 16 10 1/8" No MS2HSB-A10BP-1000Z0 $1205.10
2 1/2" Steel 3-Steel 1500 480V/3PH 16 13 7/8" No MS2HSB-A13PP-1500Z0 $1245.27
2 1/2" Steel 3-Steel 2000 480V/3PH 16 17 1/2" No MS2HSB-A17HP-2000Z0 $1292.65
2 1/2" Steel 3-Steel 2500 480V/3PH 16 21 1/8" No MS2HSB-A21BP-2500Z0 $1353.42
2 1/2" Steel 3-Steel 3000 480V/3PH 16 24 7/8" No MS2HSB-A24PP-3000Z0 $1416.25
2 1/2" Steel 3-Steel 4000 480V/3PH 16 32 1/4" No MS2HSB-A32DP-4000Z0 $1541.91
2 1/2" Steel 3-Steel 5000 480V/3PH 16 39 1/2" No MS2HSB-A39HP-5000Z0 $1668.60
2 1/2" Steel 3-Steel 6000 480V/3PH 16 46 7/8" No MS2HSB-A46PP-6000Z0 $1769.54

APPLICATION: BUNKER C AND #6 FUEL OILS

NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" Steel 3-Steel 1000 240V/3PH 8 17 1/2" No MS2HSB-A17HL-1000Z0 $1292.65
2 1/2" Steel 3-Steel 1500 240V/3PH 8 24 7/8" No MS2HSB-A24PL-1500Z0 $1416.25
2 1/2" Steel 3-Steel 2000 240V/3PH 8 32 1/4" No MS2HSB-A32DL-2000Z0 $1541.91
2 1/2" Steel 3-Steel 2500 240V/3PH 8 39 1/2" No MS2HSB-A39HL-2500Z0 $1668.60
2 1/2" Steel 3-Steel 3000 240V/3PH 8 47" No MS2HSB-A470L-3000Z0 $1769.54
2 1/2" Steel 3-Steel 4000 240V/3PH 8 61 5/8" No MS2HSB-A61KL-4000Z0 $1940.52
2 1/2" Steel 3-Steel 5000 240V/3PH 8 76 1/4" No MS2HSB-A76DL-5000Z0 $2157.85
NPT Size NPT Material Elements Watts Volts/Phase W/in² Immersion Length Sensor Part Numbers Price
2 1/2" Steel 3-Steel 1000 480V/3PH 8 17 1/2" No MS2HSB-A17HP-1000Z0 $1292.65
2 1/2" Steel 3-Steel 1500 480V/3PH 8 24 7/8" No MS2HSB-A24PP-1500Z0 $1416.25
2 1/2" Steel 3-Steel 2000 480V/3PH 8 32 1/4" No MS2HSB-A32DP-2000Z0 $1541.91
2 1/2" Steel 3-Steel 2500 480V/3PH 8 39 1/2" No MS2HSB-A39HP-2500Z0 $1668.60
2 1/2" Steel 3-Steel 3000 480V/3PH 8 47" No MS2HSB-A470P-3000Z0 $1769.54
2 1/2" Steel 3-Steel 4000 480V/3PH 8 61 5/8" No MS2HSB-A61KP-4000Z0 $1940.52
2 1/2" Steel 3-Steel 5000 480V/3PH 8 76 1/4" No MS2HSB-A76DP-5000Z0 $2157.85

Screw Plug Immersion Heaters–NEMA 4 Enclosures Typical Heating Mediums

Back to Top
  • Clean Water
  • Process Water
  • Forced Air & Gases
  • Caustic Solutions
  • Degreasing Solutions
  • Lightweight Oils
  • Heat Transfer Oils
  • Mildly Corrosive Solutions
  • Medium Weight Oils
  • Paraffin
  • Bunker C and #6 Fuel Oils

Can't Find What You Need? Contact Us, We'll Custom Design & Manufacture to Your Requirements!
